PROSOFT MVI56E-MNETC Communication Module

Product manual:

PROSOFT MVI56E-MNETC is a Modbus TCP/IP communication module designed specifically for Allen Bradley ControlLogix series controllers.
This module can connect ControlLogix PLC with devices that support Modbus TCP protocol,
Product Features
Dual port Ethernet connection: The MVI56E-MNETC module has two independent Ethernet ports,
Support redundancy and load sharing to ensure the stability and reliability of communication.
High speed data transmission: supports transmission rates up to 10/100 Mbps,
Capable of achieving efficient data exchange in harsh industrial environments.
Multi device connection: supports multiple client/server connections,
Ability to communicate with multiple Modbus TCP/IP devices simultaneously, enhancing system flexibility.
Fault recovery: The module supports functions such as data caching and automatic reconnection,
Effectively reduce the risk of data loss caused by communication interruptions.
Powerful diagnostic function: equipped with LED status indicator lights and module diagnostic tools,
Facilitate real-time monitoring of module status and quick troubleshooting.
technical specifications
Network protocol: Supports Modbus TCP/IP protocol and is compatible with master/slave mode.
Transmission speed: 10/100 Mbps adaptive Ethernet port
Maximum number of connections: Supports up to 30 clients and 10 server connections
Power supply: 5V DC (powered through the ControlLogix backplane)
Environmental temperature: The working temperature range is from 0 ° C to 60 ° C, suitable for industrial environments
Installation type: Installed in the ControlLogix backplane slot, occupying one I/O slot
Configuration method
Install ProSoft Configuration Builder: Open the software and add the MVI56E-MNETC module.
Set network parameters: Configure IP address, subnet mask, and gateway address according to network requirements.
Configure Modbus communication parameters: Set the Modbus client/server role, port number, timeout, and other parameters of the module.
Upload to module: After completing the settings, upload the configuration to the module and restart to apply the new settings.

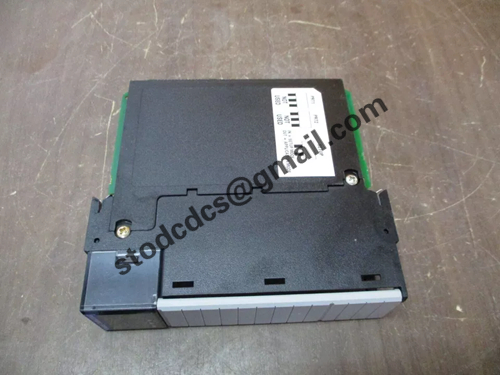

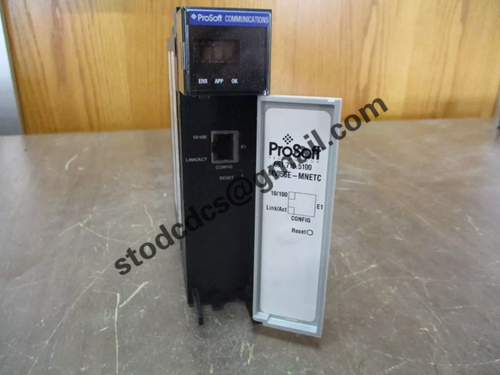

Product details picture:
