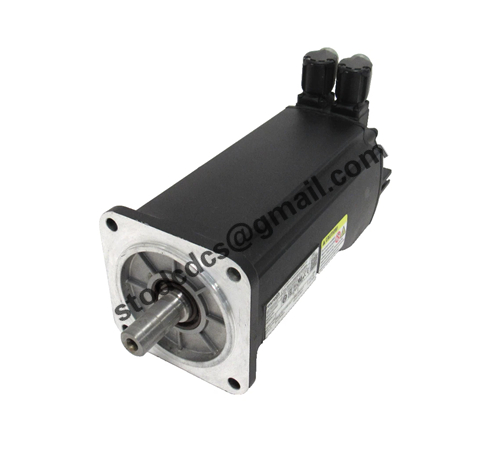

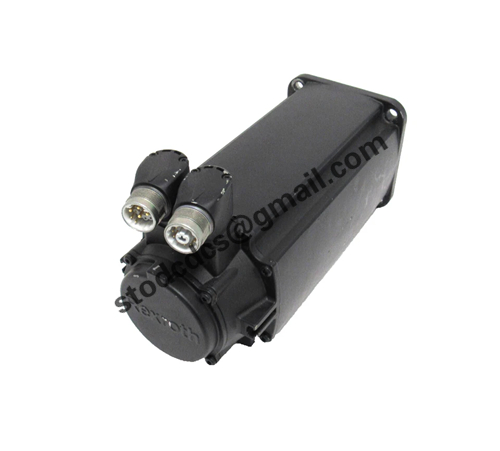

REXROTH MSK101D-0200-NN-M1-AG0-NNNN servo motor

Brand:REXROTH
Model:MSK101D-0200-NN-M1-AG0-NNNN
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

REXROTH MSK101D-0200-NN-M1-AG0-NNNN servo motor

Product manual:

REXROTH MSK101D-0200-NN-M1-AG0-NNNN is a high-performance synchronous servo motor in the Bosch Rexroth MSK series, widely used in automation systems that require high precision, torque, and dynamic response.

1、 Product basic information:
Brand: Bosch Rexroth

Model: MSK101D-0200-NN-M1-AG0-NNNN

Series: MSK (IndraDyn S)

Type: Permanent Magnet Synchronous Motor

2、 Main technical specifications (typical parameters, subject to nameplate):
Project parameter description
Flange size 192 mm
Motor length grade D (corresponding to larger length and higher torque output)
Continuous torque (60K) is approximately 65 Nm (depending on the cooling method)
The maximum torque is about 210 Nm (depending on the specific encoder and cooling method)
Rated speed is about 3000 rpm
Maximum speed up to 6000 rpm (depending on the selection)
Cooling method: natural convection (M1 indicates no additional cooling)
Encoder type AG0=Optical multi turn absolute encoder EnDat 2.1
Axis type NN=Optical axis (without keyway)
Connection method: Lateral connector outlet

3、 Product Features:
High dynamic performance:

Low moment of inertia, suitable for high-speed start stop applications

Accurate position control and fast response

High torque density:

Same level volume provides higher output torque

Suitable for situations with heavy loads or requiring high rigidity

Multiple feedback support:

Built in high-resolution photoelectric encoder (EnDat multi turn)

Support precision control requirements for servo drives

Flexible installation and configuration:

Flange compatible with Rexroth IndraDrive platform

The cable connection is rotatable for easy on-site wiring
