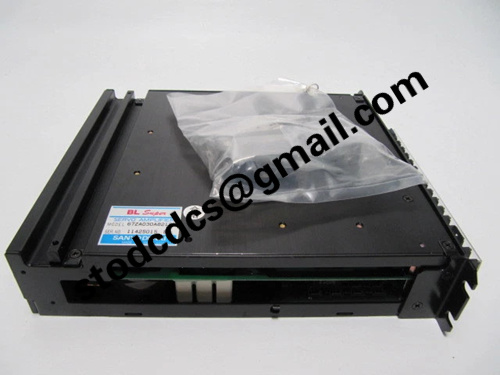

SANYO DENKI 67ZA030A821S00 servo amplifier

Brand:SANYO DENKI
Model:67ZA030A821S00
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

SANYO DENKI 67ZA030A821S00 servo amplifier

Product manual:

1、 Product positioning

The model is labeled with "67ZA030A" and belongs to the SANYO DENKI BL Super/amplifier series. It is a power amplifier used to drive AC servo motors.

Commonly used in medium to high power industrial automation systems, in conjunction with SANYO DENKI's SANMOTION servo motors.

2、 Typical functions and features

Power amplification output
Capable of outputting large currents and voltages to drive medium to large servo motors, meeting high torque load requirements.

Multiple control modes supported
It can adapt to position control, speed control, torque control and other modes to meet different application requirements.

Improved protection mechanism
It includes multiple protection functions such as overcurrent, overvoltage, undervoltage, short circuit, overheating, and feedback abnormalities to ensure the safety of the motor and system.

Feedback compatibility
Support feedback devices required for motors (such as incremental encoders, absolute encoders, etc.) to achieve precise closed-loop control.

Automatic tuning/parameter setting
The amplifier has the ability to automatically identify motor/load characteristics, adjust gain and filtering parameters, and simplify debugging.

Heat dissipation and structural design
Adopting a good heat dissipation structure (heat sink/ventilation design) to ensure controlled temperature rise during high-power operation.

3、 Usage precautions and verification suggestions

Match judgment: It is necessary to confirm that the rated output current and voltage of the amplifier match the rated parameters of the driven motor to avoid overload or insufficient power.

Power supply requirements: In addition to the main power supply, this model of amplifier may require additional control power (logic power supply) supply.

Wiring specifications: Power lines and encoder signal lines must use shielded wires, short wire lengths, and avoid interference.

Initial debugging: It is recommended to test the signal and protection function during low-speed no-load operation, and then gradually load and adjust the parameters.
