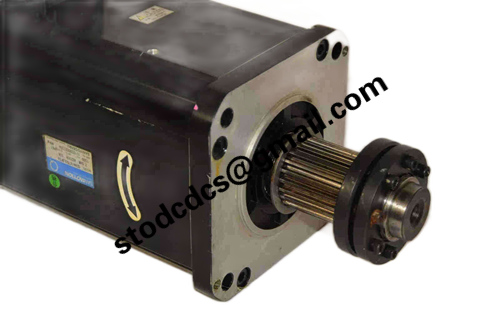

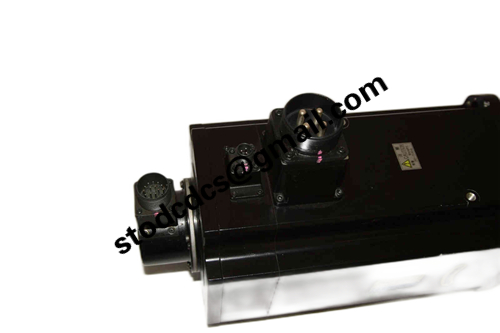

SANYO DENKI Q2AA18750LBF34 servo motor encoder

Brand:SANYO DENKI
Model:Q2AA18750LBF34
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

SANYO DENKI Q2AA18750LBF34 servo motor encoder

Product manual:

SANYO DENKI Q2AA18750LBF34 is a high-performance AC servo motor belonging to the SANMOTION Q series. This series is known for its high-precision control and fast response, and the encoder part in the model is a key component for achieving high-precision positioning and control.

Encoder features:

High resolution feedback system
Equipped with high-resolution photoelectric or magneto electric encoders, the common resolution range is from 2500 p/rev to over 20 bits
(depending on the version). This precision enables the motor to achieve fine position control and extremely smooth speed adjustment.

Absolute encoder options
Supports absolute value encoder version, which can maintain position data even after power failure, avoiding reset or origin regression operations,
Improve system startup efficiency and security.

High speed response performance
The encoder output signal has a high response frequency and extremely low communication delay with the servo amplifier,
Ensure that the system can accurately control position and speed even during high-speed operation.

Strong anti-interference ability
The signal interface adopts differential output (such as A/B/Z or RS-485 communication),
Excellent anti noise performance, suitable for long-distance signal transmission in industrial environments.

High compatibility with servo drives
Fully compatible with PY, Q, and R series servo drives, supporting automatic recognition and parameter synchronization,
Improve overall system performance and debugging efficiency.

Sturdy structure and high reliability
The encoder is assembled at the rear of the motor and has good dust-proof and anti vibration design,
Can maintain signal stability under high temperature and complex working conditions.

Summary of Function and Function:
The encoder of Q2AA18750LBF34 provides real-time position and speed feedback of the motor, which is the core of the closed-loop servo system.
By exchanging high-speed data with the driver, precise position control, speed control, and torque control can be achieved.
