SANYO DENKI QS1A15APXXXXS servo drive

Product manual:

Sanyo Denki QS1A15APXXXXS servo drive

Series: SANMOTION QS Series
Type: AC Servo Driver
Main purpose: Used to drive Sanyo Denki QS series servo motors, achieving precise position, speed, and torque control

Technical parameters (refer to specifications of the same series)

Rated input voltage: three-phase AC 200-230 V

Control method: Digital vector control

Control modes: position control, speed control, torque control

Output current: approximately 15 A

Communication interface: Supports standard industrial buses (such as pulse, analog signals, or digital communication, depending on the specific model configuration)

Cooling method: natural cooling or forced air cooling

Installation method: Vertical panel installation

Protection function: overcurrent, overvoltage, undervoltage, overheating, short circuit, and encoder abnormality protection

Insulation level: F level

Protection level: IP20

Performance Characteristics

High precision control, fast response, suitable for high dynamic loads

Supports multiple control modes and can be flexibly applied to different working conditions

Built in automatic parameter tuning function, simplifying motor debugging

Compact size, easy to install in the control cabinet

High reliability design with multiple protection mechanisms to enhance system security

Fully compatible with QS series servo motors to ensure stable system operation

Typical Applications

automatic production line

CNC machine tools and processing equipment

Robot joint drive

Packaging and Printing Machinery

Precision positioning and handling system

Industrial automation equipment control

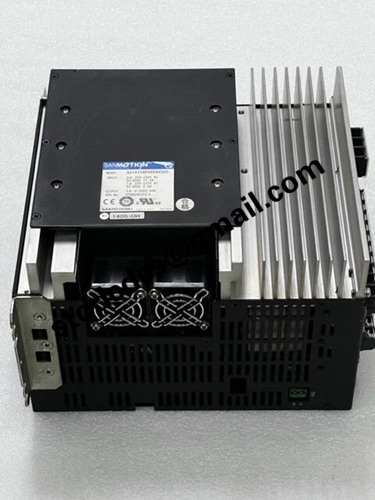

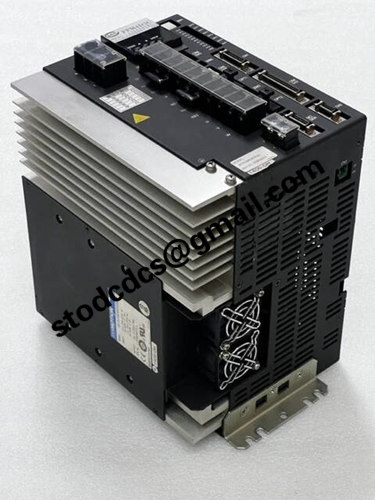

SANYO DENKI QS1A15APXXXXS Product details picture:

QS1A15AP0XXXXS
