Schneider BMXNOM0200 Port Module

Product manual:

BMXNOM0200 is a communication port module of Schneider Electric's Modicon M340 series PLC,
Used to expand and connect PLC with other devices, achieve data communication and network connection.

2、 Main functions
Communication interface: Provides dedicated network ports for Modbus TCP/IP
Communication using industrial protocols such as Ethernet/IP.

Module type: Ethernet port module, supporting high-speed data transmission.

Scalability: Can be used in conjunction with M340 series CPUs,
Support parallel connection of multiple modules to enhance the network communication capability of the system.

Easy configuration: Set and manage network parameters through software provided by Schneider Electric.

3、 Technical parameters
Interface type: RJ45 Ethernet port

Supported protocols: Modbus TCP, Ethernet/IP, TCP/IP and other industrial communication protocols

Data transmission rate: 10/100 Mbps automatic negotiation

Power supply: Powered through the PLC rack backplane

Installation form: Standard M340 series rack slot installation

Working temperature: 0 ° C to 60 ° C

Environmental standards: meet the dust and vibration prevention requirements of industrial environments

4、 Application Fields
PLC Network Communication in Industrial Automation Systems

Remote monitoring and data collection

Networking and integration of production line equipment

Communication interface between configuration software and PLC

5、 Usage suggestions
Ensure that the module is compatible with the host CPU and correctly installed in the M340 rack

Use shielded Ethernet cables that comply with industry standards to ensure signal stability

Regularly check the network connection status to avoid communication issues caused by cable problems

When configuring, use Schneider official software to correctly set the IP address and protocol parameters

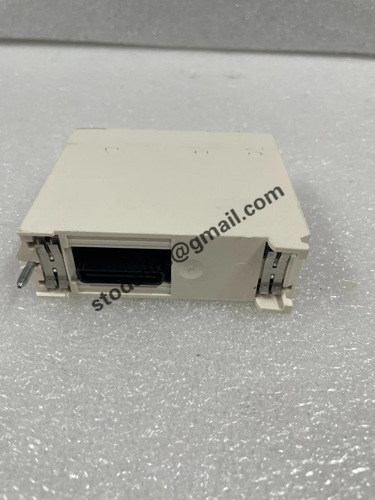

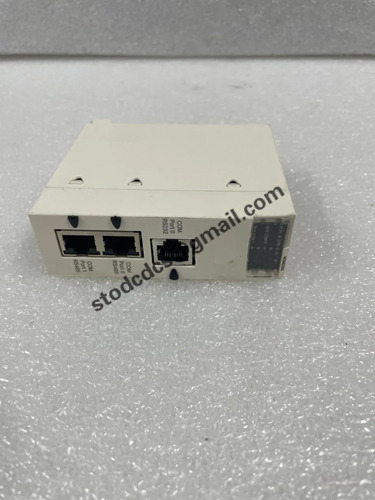

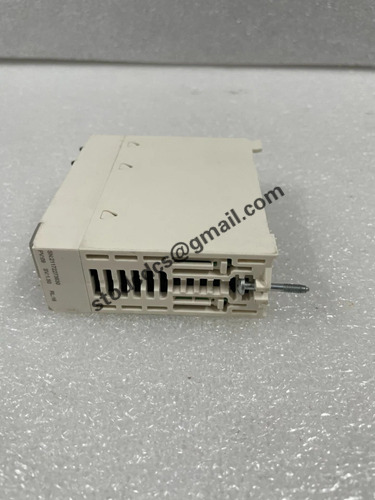

Product details picture:
