SCHNEIDER TWDLMDA40DTK Controller Module

Product manual:

The SCHNEIDER TWDLMDA40DTK controller module is an industrial automation controller module launched by Schneider Electric,
Usually used in its Modicon series PLC (Programmable Logic Controller) system,
Responsible for executing logical control tasks, managing input and output signals, and coordinating the operation of industrial automation equipment.

1、 Basic Product Information
Project Description
Brand Schneider Electric
Model TWDLMDA40DTK
Type Controller Module (PLC CPU Module)
Application System Modicon PLC Series
Functional logic control, program execution, I/O management

2、 Main functions
CPU core processing
Execute user written control programs to achieve logical judgment, sequential control, data processing, etc.

I/O management
Collect digital and analog input signals, and output control signals to the actuator device.

communication interface
Support data communication with SCADA/DCS, other PLC modules, or on-site devices.

Scalability
Can be combined with various I/O modules and expansion modules to meet different automation scale requirements.

Programming support
Compatible with official programming software from Schneider Electric, such as Unity Pro or EcoStruxure Control Expert.

3、 Technical parameters (reference)
Parameter Description
Processor type: Schneider dedicated industrial grade CPU
Storage capacity for programs and data storage, with specific capacity depending on the model
The supply voltage is usually 24 V DC
Communication interface RS-232/RS-485, Ethernet (depending on specific model)
Working temperature -20 ° C to+60 ° C
Installation method: DIN rail installation, modular insertion
The programming language supports IEC 61131-3 standards such as ladder diagrams, functional block diagrams, structured text, etc

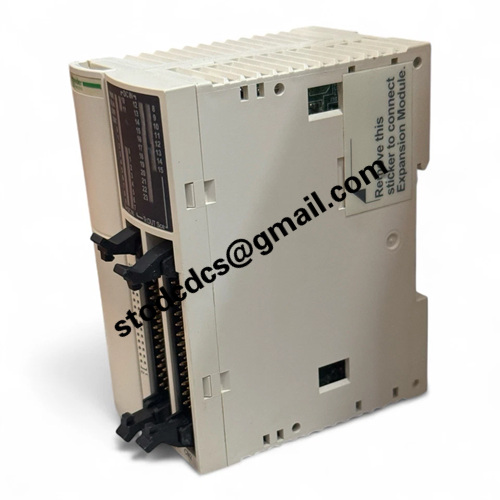

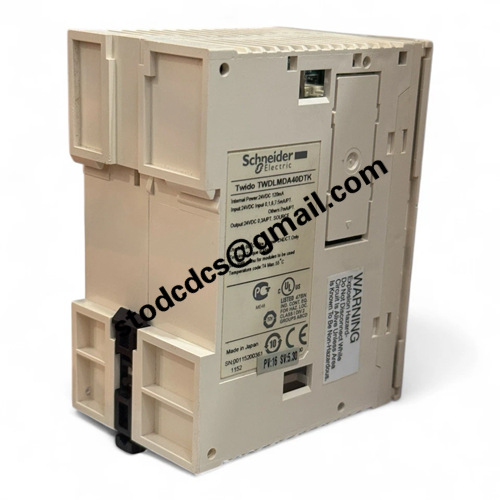

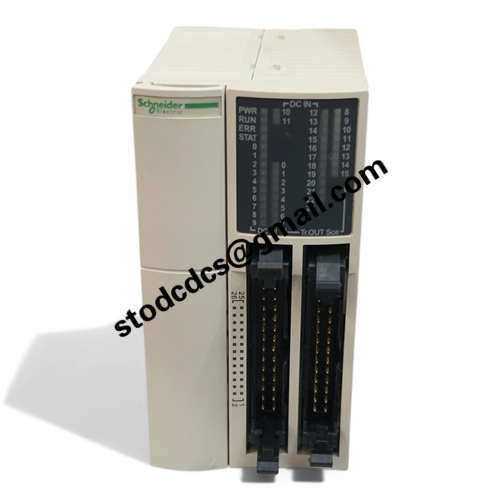

Product details picture:

TWDLMDA40DTK
