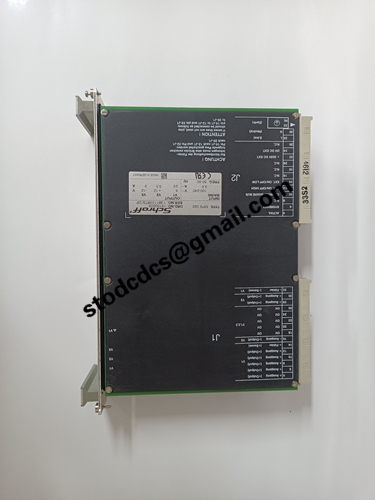

SCHROFF MPS022 13100203 AC/DC power module

Model:MPS022 13100203
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

SCHROFF MPS022 13100203 AC/DC power module

Product manual:

The SCHROFF MPS022 13100203 AC/DC power module is an industrial grade power module produced by SCHROFF in Germany, typically used in rack mounted systems to provide stable DC power to electronic modules.

Basic Information
Model/Material Number: MPS022/13100203
Type: AC input, DC output power module
Applications: Rack mounted electronic systems, industrial control cabinets, embedded systems, etc
Installation form: Suitable for 19 inch rack or backplane systems
Features
Acceptable wide input voltage: AC 90-264V or DC 130-350V
Built in power factor correction (PFC) to improve power supply efficiency and reduce interference
Provide multiple DC output tracks to meet the voltage requirements of different modules
Equipped with overcurrent, short circuit and other protections to improve system reliability
Technical parameters (typical specifications)
Input voltage: 90-264 VAC/130-350 VDC
Output voltage: Multiple DC outputs including+5V,+12V, -12V, etc
Rated power: approximately 200   W or more, depending on the output combination
Installation method: rack or backplane installation
Applicable environment: industrial automation, communication equipment, testing systems, etc
Application scenarios
Rack mounted electronic system power supply (such as VMEbus)
Stable DC power supply for industrial automation control cabinets
Embedded control system and testing equipment
Industrial environments that require multiple reliable DC outputs

This module provides efficient and reliable power support for industrial systems by converting AC power into multiple stable DC outputs, and is a commonly used basic power unit in industrial rack mounted systems.
