SCXI-1100 multiplexer module

Product manual:

Introduction to SCXI-1100 multiplexer module

SCXI-1100 is a multiplexer (MUX) module in the NI (National Instruments) SCXI series, used to sequentially switch multiple analog signal channels to a data acquisition system, achieving high-density, multi-channel signal acquisition and testing.

Module positioning

Belonging to the SCXI signal conditioning and switching module

Expand the number of channels in the data acquisition system through modularization

Mainly used for laboratory measurement, automated testing, or industrial data acquisition systems

Main functions

Multi channel analog signal switching, connecting multiple signals in time sequence to a single path

Support the acquisition of voltage, current, and other types of analog signals

Can be integrated with a data acquisition card (DAQ) through the SCXI bus

Provide fast channel switching to improve measurement efficiency

Design and Performance Characteristics

Modular design for easy expansion and maintenance

High precision analog signal switching ensures measurement accuracy

Supports multiple acquisition modes and can control channel scanning according to the program

Industrial and laboratory level compatibility, strong anti-interference ability

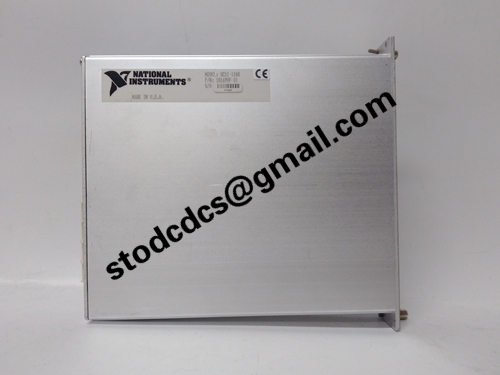

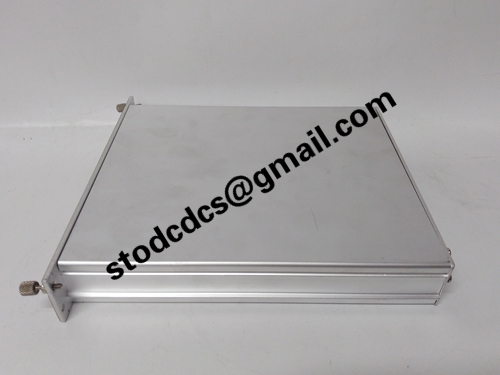

SCXI-1100 Product details picture:
