SCXI-1125 Isolation Input Module

Product manual:

Overview of SCXI-1125 Isolation Input Module

Type: Industrial signal isolation input module (SCXI series)

Core function: Collect analog signals from sensors or external devices, and provide electrical isolation to ensure the safe operation of the data acquisition system and upper level equipment

Typical installation method: Insert into the SCXI-1000 slot chassis

Application positioning: Key input modules for data acquisition systems, experimental measurement and control systems, or industrial automation measurement and control platforms

Main functions

signal acquisition

Support multi-channel analog signal input (such as voltage and current signals)

Can simultaneously collect multiple measurement points

Electrical isolation

Isolation of input end from chassis backplane and control system

Prevent high voltage or noise interference from damaging the system

Signal conditioning

Built in signal filtering and gain adjustment

Output standardized signals to data acquisition cards or controllers

Module status indication

Provide channel working status or error indication

Easy to maintain and troubleshoot

Technical Features

Multi channel design: capable of simultaneously collecting multiple analog signals

High precision measurement: low drift, low noise

Industrial grade isolation: enhancing system security and anti-interference capability

Modular structure: convenient for combination and expansion in SCXI system

High reliability: suitable for long-term continuous measurement and control applications

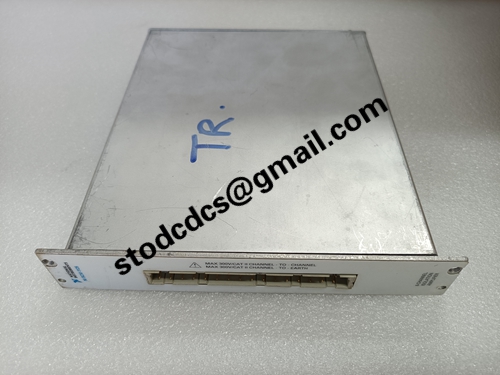

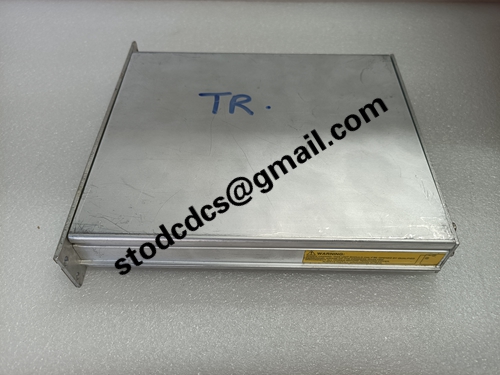

SCXI-1125 Product details picture:

SCXI-1125 product video
