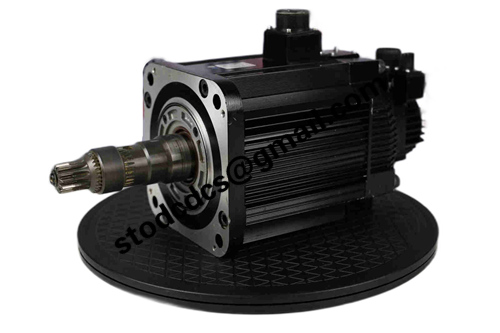

SGMGH-44A-YR servo encoder

Model:SGMGH-44A2A-YR
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

SGMGH-44A-YR servo encoder

Product manual:

Description of YASKAWA SGMGH-44A-YR servo encoder

The model SGMGH-44A-YR belongs to the Yaskawa Sigma II series high-power servo motor. The motor is equipped with a dedicated high-resolution encoder as standard, which is the core component of the motor closed-loop control.

1、 Encoder type

According to the standard configuration of this series, the built-in encoder typically has the following features:

Absolute or incremental encoder (depending on version)

High resolution structure, commonly above 17 bits

Fully compatible with Yaskawa dedicated servo drives

The suffix YR of the motor model indicates the version series, and the encoder comes standard with the motor and is not sold separately as an independent model in the public catalog.

2、 Main functions

Provide motor position feedback
Real time detection of motor rotor angle, transmitted to servo drive, forming closed-loop control.

Ensure motion synchronization
In a multi axis system, encoder feedback maintains precise coordination among the servo axes.

3、 Encoder signal characteristics

The Yaskawa encoder series has the following characteristics:

High precision angle detection

The feedback signal has strong anti-interference ability

Using Yaskawa's dedicated feedback interface to communicate with the driver

Support long-distance cable transmission (according to driver requirements)

4、 Adaptive driver

The SGMGH series is typically paired with the following driver families:

Sigma II series servo drive
