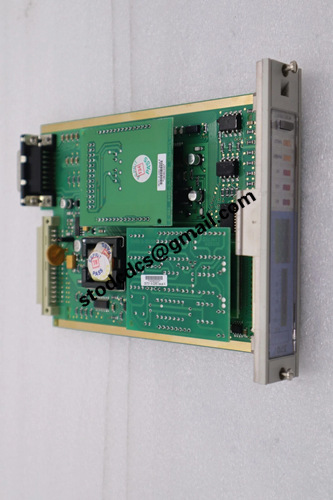

SIEGER 05701-A-0405 Control Card

Brand:SIEGER
Model:05701-A-0405
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

SIEGER 05701-A-0405 Control Card

Product manual:

SIEGER 05701-A-0405 control card is an electronic control unit used in industrial automation systems,
Usually used to control, monitor, or drive certain mechanical or process equipment.
This type of control card is widely used in fields such as heat treatment systems, combustion control, process heaters, industrial furnaces, gas control systems, etc.
SIEGER is one of the industrial control brands in Germany, and its products are commonly used in combustion and heating automation control systems with high reliability requirements.

1、 Basic Product Information
Project Content
Brand SIEGER (Germany)
Model 05701-A-0405
Product Type Control Board/Control Card
Functional positioning control, monitoring, or driving of industrial equipment (such as burners, furnaces, motors, etc.)
The installation method is usually slot type or screw fixed installation inside the control cabinet
The adaptation system may belong to SIEGER's own combustion control system, temperature control system, etc

2、 Main functions (speculated)

Input signal processing

Receive input signals from temperature sensors, pressure switches, flame detectors, etc;

Equipped with signal conditioning and status sampling functions.

Output control function

Control the start and stop of equipment such as solenoid valves, relays, igniters, fans, etc;

Provide relay output, level drive, or analog output methods.

System linkage logic control

Execute preset logic judgments, such as ignition sequence, shutdown protection, over temperature protection, etc;

Possible built-in microcontroller, supporting software logic configuration.

Status display and communication (optional)

Equipped with LED status indicator lights;
