Siemens 6ES5420-4UA13 Programmable Logic Controller Module

Product manual:

Siemens 6ES5420-4UA13 is a programmable logic controller (PLC) module in the Siemens SIMATIC S5 series, specifically an input/output (I/O) module used to expand the functionality of PLC systems. This module is used to process input signals and control output devices, supporting various industrial automation tasks.
Main features:
Model: 6ES5420-4UA13
Series: SIMATIC S5
Module Type: I/O Module
Function:
Input processing: Receive signals from external sensors and devices, convert them into signals that can be processed by PLC.
Output control: Convert PLC control signals into control commands for external devices.
Signal interface: Provides various types of input and output interfaces to meet different industrial application requirements.
Application scenarios:
Automation control: In industrial automation systems, it processes sensor signals and controls actuators such as motors, valves, etc.
Data collection: used to collect various data during the production process for real-time monitoring and analysis.
Process control: used to control production lines and equipment to ensure stable and efficient operation of the production process.
Technical specifications:
Input/Output Channels: Typically, there are multiple input and output channels, depending on the module design.
Signal type: Supports digital input and output signals, suitable for various industrial applications.
Electrical characteristics: Modules have specific electrical specifications, such as voltage range, current capacity, etc., to ensure compatibility with other system components.
Interface standard: Complies with SIMATIC S5 series standard interfaces to ensure compatibility with other modules and systems.
Installation and use:
Installation: Install the 6ES5420-4UA13 module into the SIMATIC S5 series rack and electrically connect it to other modules through the system backplane.
Configuration: Use STEP 5 programming software to configure the module, set the parameters and control logic of input/output channels.
Debugging: After installation, perform system debugging and testing to ensure that the module works properly and is compatible with other parts of the system.

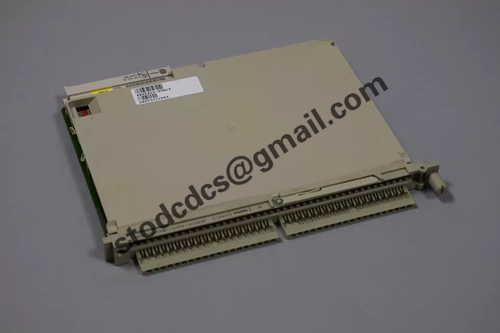

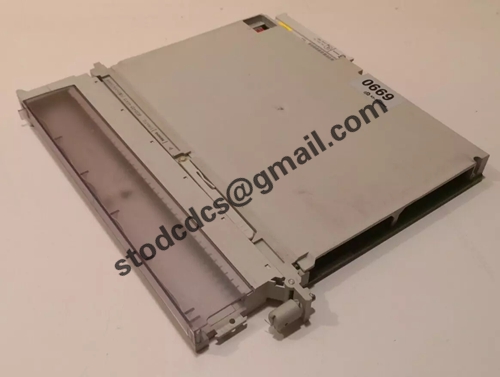

Product details picture:
