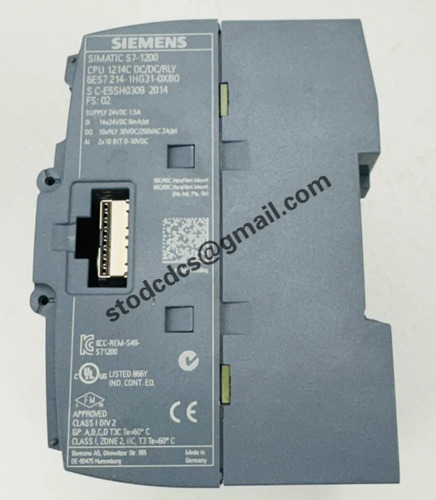

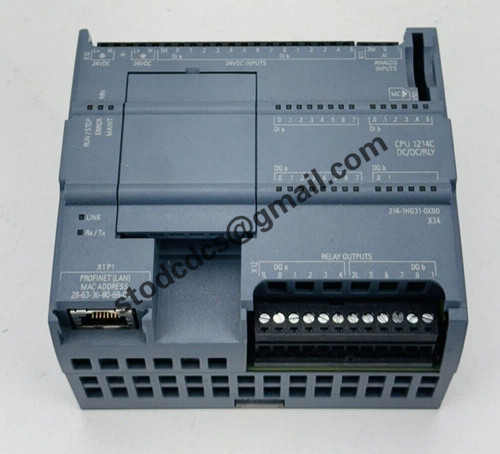

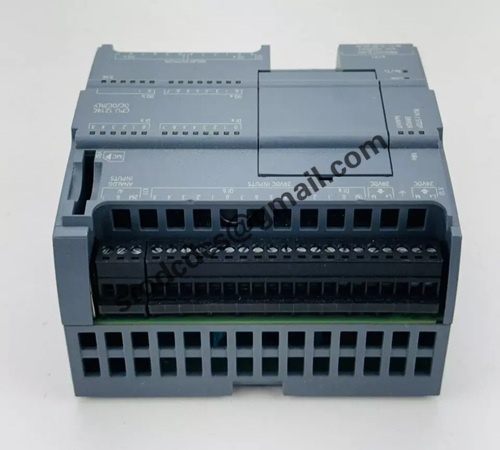

Siemens 6ESC214-1HG31-0XB0 central processing unit

Brand:Siemens
Model:6ES7214-1HG31-0XB0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ESC214-1HG31-0XB0 central processing unit

Product manual:

Siemens 6ESP2714-1HG31-0XB0 is a central processing unit (CPU 1214C DC/DC) of the Siemens S7-1200 series, used in small and medium-sized automation control systems, suitable for industrial applications such as equipment control, logic operation, data processing, and remote communication.

1、 Basic Information
Project Content
Product model 6ES7214-1HG31-0XB0
Product Name: CPU 1214C DC/DC/DC
Series SIMATIC S7-1200
Processor type: Central Processing Unit (CPU)
Power type 24V DC power input
Digital input/output 14 DI/10 DO (transistor output)
Analog input: 2-channel analog input
Integrated communication port 2 x PROFINET interface (Ethernet)

2、 Technical parameters
Parameter values/descriptions
User program memory 100 KB program/50 KB data
CPU running speed is fast, with a cycle time of approximately 1 µ s/instruction
14 digital inputs, 24V DC
Number of digital outputs: 10 channels, 24V DC, transistor output (source type)
Analog input 2 channels (voltage/current, 12 bits)
High speed counter (HSC) supports up to 6 (with 4 up to 100kHz)
PWM output supports pulse width modulation output
Real time clock with built-in real-time clock
Communication interface PROFINET × 2, supports S7 communication/Modbus TCP
Expansion capability supports up to 8 signal modules and 3 communication modules for expansion
Working temperature -20 ° C~+60 ° C
Installation method: DIN rail installation

3、 Functional Features
Built in digital and analog input/output, saving space and cost;

✅ Support PROFINET communication for easy network integration;

✅ Support PID control, data recording, web server and other functions;

Programming and debugging can be done through TIA Portal;

✅ Support remote maintenance and diagnosis;

✅ Suitable for small and medium-sized automation equipment, such as packaging machines, filling lines, warehouse control, etc.

4、 Application Fields
Industrial equipment control (food, packaging, textile, machinery manufacturing)

Water treatment and building automation system

Intelligent production line, logistics and warehousing system

Education and R&D Automation Experiment Platform
