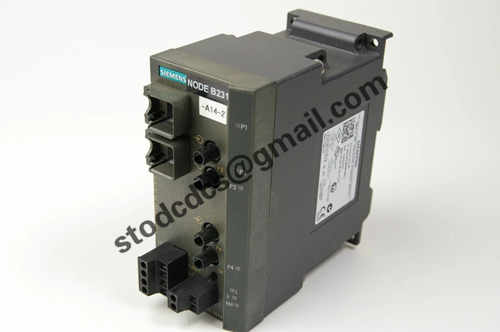

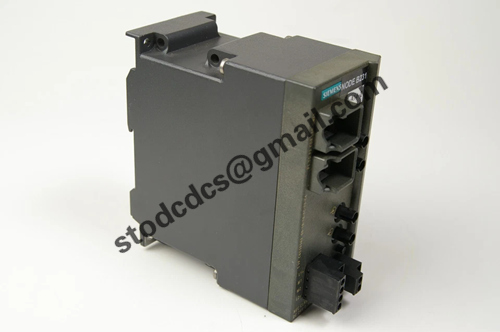

Siemens 6GK5202-2BB00-2BA3 Logic Controller

Brand:Siemens
Model:6GK5202-2BB00-2BA3
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6GK5202-2BB00-2BA3 Logic Controller

Product manual:

The Siemens 6GK5202-2BB00-2BA3 logic controller is a common communication processing module (CP) in the SIMATIC S7-200 series,
Used for data communication and control tasks in industrial automation systems.

1、 Product Overview
Model: 6GK5202-2BB00-2BA3

Product Category: Communication Processor Module (CP)

Applicable series: Siemens SIMATIC S7-200 PLC series

Function: Provide industrial Ethernet communication capability for S7-200 controller, support multiple network protocols, and achieve data exchange between PLC and upper system, other PLCs or remote devices.

2、 Main functions and features
Function Description
Industrial Ethernet communication supports standard industrial Ethernet communication, connecting control systems with factory networks
The protocol supports TCP/IP, UDP, ISO on TCP, Modbus TCP, and other protocols
Data exchange supports reading and writing of data blocks, bits, and words through Ethernet, facilitating remote monitoring and control
Multi point communication supports multiple communication connections, improving system flexibility
The diagnostic function integrates rich diagnostic information for easy troubleshooting and maintenance
Compatibility and perfect compatibility with S7-200 series PLC, simplifying integration and configuration

3、 Technical parameters
Parameter Description
Interface type: 10/100 Mbps Ethernet port
Power supply voltage 24 V DC (powered by PLC)
Communication protocols such as TCP/IP, UDP, ISO on TCP, Modbus TCP, etc
Communication speed 10/100 Mbps automatic switching
Working temperature 0~60 ° C
Storage capacity supports program storage and data caching
Sizes compatible with S7-200 standard module

4、 Application Fields
Mechanical Manufacturing Automation Control

process control system

Factory Data Acquisition and Monitoring (SCADA)

Remote device monitoring and maintenance

Data communication with other PLCs or industrial computer systems
