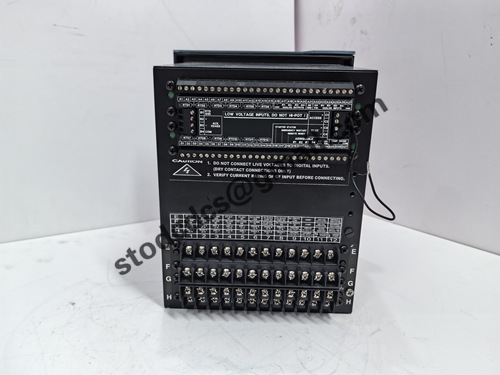

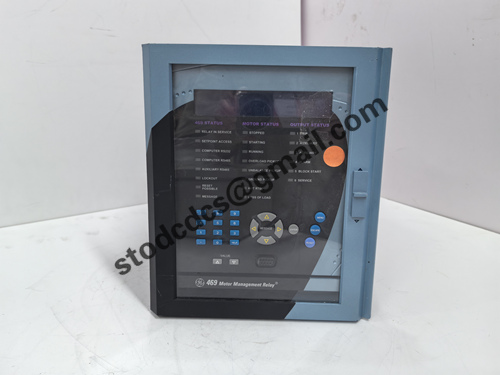

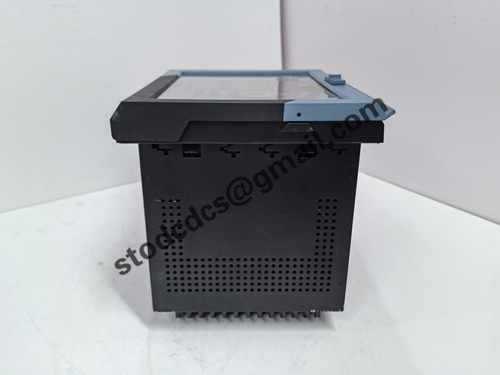

SR469 469-P5-HI-A20-E Motor Management Relay

Brand:GE
Model:SR469 469-P5-HI-A20-E
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

SR469 469-P5-HI-A20-E Motor Management Relay

Product manual:

SR469 is a high-performance motor management relay in the GE Multilin series,
Specially designed for protecting and controlling electric motors, widely used in industrial and power generation fields.
This relay supports multiple motor protection functions, including overload protection, locked rotor protection
Overvoltage and undervoltage protection, phase loss protection, temperature protection, etc.

The SR469 relay is particularly suitable for precise protection of high-power motors and can monitor the operating status of the motor in real time,
Timely detect potential faults and issue alarms or power outages to ensure the long-term safe and reliable operation of motors and electrical equipment.

Main technical parameters
Project parameter description
Input voltage range 85-265 VAC/DC
Output control mode: Relay output, alarm output
Output contact type: normally open contact (NO), normally closed contact (NC)
Relay configuration with 5 standard configurations, supporting multiple types of input and output contact configurations
Display and control LCD display, support button operation, simple and easy-to-use user interface
Protection function with adjustable time delay function
The communication interface supports communication protocols such as Modbus and DNP3
Environmental temperature range -20 ° C to+60 ° C
Relay lifespan ≥ 100000 operations
Installation method: Panel installation, standard 19 inch rack installation (optional rack)
Certification standards UL, CE, CSA, IEC 60947-4-1, IEC 60255

Product Features
Comprehensive motor protection function: integrating multiple motor protection functions, suitable for various application scenarios, reducing the risk of motor failure

High precision and high reliability: providing precise protection against overload, overvoltage, undervoltage, grounding faults, etc., ensuring that the motor is not damaged

Adjustable protection settings: The protection settings can be flexibly adjusted according to specific needs and support personalized configuration

Durable and sturdy: suitable for harsh environments, with strong anti-interference ability

Support remote monitoring and control: remote monitoring and operation can be carried out through the network to improve management efficiency
