SR469-P5-HI-A20-E Motor Management Relay

Product manual:

Introduction to SR469-P5-HI-A20-E Motor Management Relay

SR469-P5-HI-A20-E is a relay module used for motor management and protection in ABB industrial automation systems. It is specifically used to monitor the status of motors, provide overload, overcurrent, undervoltage, and phase sequence protection, and can output control signals to PLC or other control units to achieve safe and reliable operation of motors.

Module positioning

Belonging to motor management relay/motor protection relay

Installed in the control cabinet or motor control center

Monitor the operation status of the motor, provide protection and control interfaces

Main functions

Overload protection: prevent motor damage due to excessive load

Phase sequence and phase loss protection: ensuring the correct direction of motor operation

Undervoltage and Overvoltage Protection: Avoiding Motor Damage Caused by Abnormal Power Supply

Output relay signals to PLC or controller to achieve automatic shutdown or alarm

Support status indication for on-site monitoring

Design and Performance Characteristics

Industrial grade design, suitable for long-term continuous operation

Modular structure for easy installation, maintenance, and replacement

High reliability and anti-interference ability ensure the safe operation of the motor

The front panel status indicator light displays relay and fault status

Typical application scenarios

Industrial motor control system

Motor protection for pump stations, fans, compressors and other equipment

Automatic management of motors in PLC or DCS systems

Motor safety assurance in factory production lines or energy systems

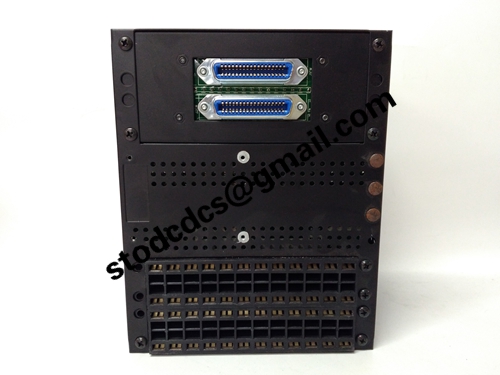

SR469-P5-HI-A20-E Product details picture:
