Teknic SST-6000-UCX Digital AC Servo Drive

Product manual:

1、 Basic Information
Product model: SST-6000-UCX

Manufacturer: Teknic, Inc. (USA)

Product Type: Digital AC Servo Drive

Series affiliation: SST-6000 series

Control mode: closed-loop servo control (used for high-precision motor control)

2、 Core functions
Control mode:

Position Mode Control

Velocity Mode

Torque Control (Torque Mode)

Support mixed mode operation (such as position+speed)

Motor type compatibility:

Permanent magnet synchronous servo motor (PMSM)

Universal three-phase AC servo motor

Encoder feedback support:

Incremental encoder (TTL/differential)

Possible support for analog or absolute value encoders (specific ordering configuration needs to be confirmed)

3、 Electrical specifications
Input voltage:

Single phase or three-phase 120~240 VAC (50/60Hz)

Rated output power: approximately 600W~1000W (depending on driver settings and motor matching)

Output current: Typical continuous current of 3~5A, peak value can reach 10A

Cooling method: natural air cooling or fan assisted heat dissipation

Protection function:

Overvoltage protection

under voltage protection

Overcurrent protection

Encoder fault detection

Motor stalling protection

4、 Communication and Interface
Control interface:

Standard digital I/O (such as start stop, direction, alarm reset, etc.)

Analog input (0-10V, 4-20mA) for speed/torque control

Communication protocol (depending on UCX version):

RS-232/RS-485 communication configuration interface

May support CANopen or Modbus RTU (specific model to be confirmed)

Debugging and configuration:

Use the software provided by Teknic for driver parameter setting and monitoring

Support automatic tuning of servo parameters

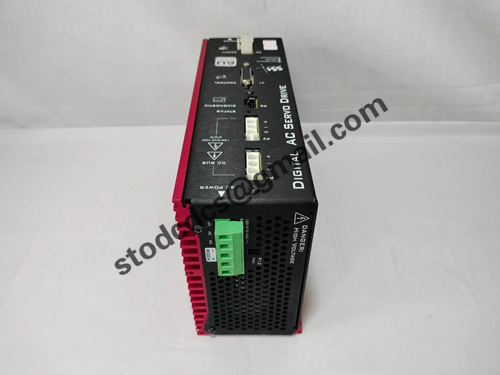

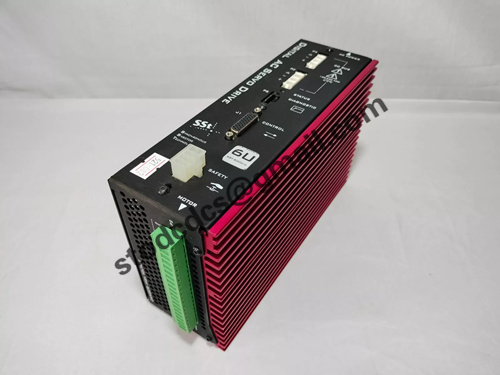

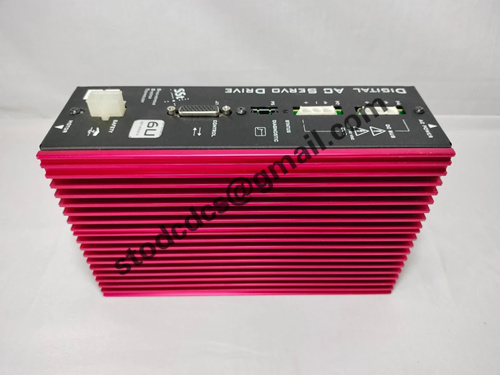

Product details picture:
