TEL Tokyo Electron 1181-000393-18 Motor Unit Distribution Board

Brand:TEL Tokyo Electron
Model:1181-000393-18
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

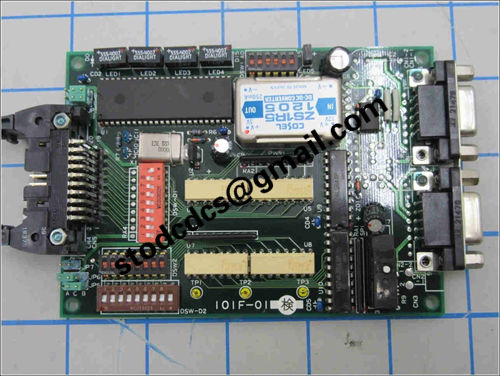

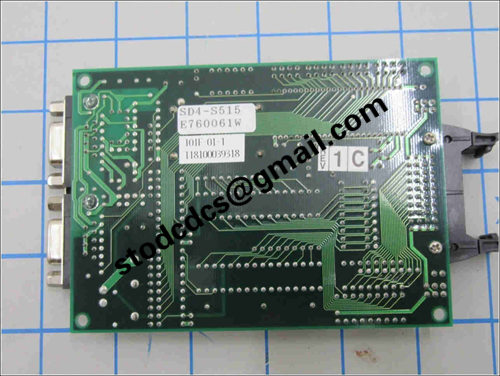

TEL Tokyo Electron 1181-000393-18 Motor Unit Distribution Board

Product manual:

Product Name: 1181-000393-18 Motor Unit Distribution Board
Manufacturer: Tokyo Electron Ltd
Product type: Motor Unit Distribution Board

1、 Product Overview
1181-000393-18 is a distributed circuit board specifically designed for motor control systems in Tokyo Electron semiconductor equipment.
This board is mainly used to connect multiple motor units, complete the distribution and isolation of power and signals
Drive control and other functions play a role in centralized power supply and signal interface management.

2、 Core functions
Motor drive signal distribution

Distribute the control signals from the main control system to multiple servo motors or stepper motors to achieve precise motion control.

Centralized signal management

Summarize feedback signals from various motors (such as encoders, limit switches, position feedback, etc.) and send them to the main control board for processing.

Physical interface transfer

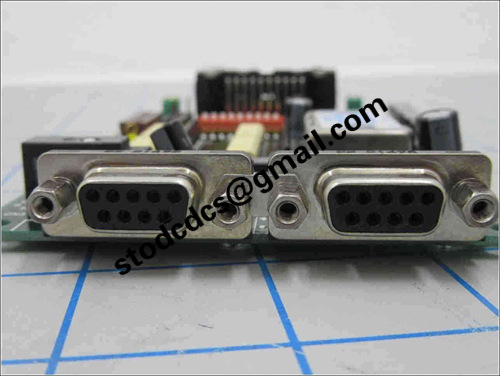

Provide standardized connectors (such as Molex, multi pin ribbon cables) for quick installation, maintenance, and replacement.

3、 Typical application devices
This motor unit distribution board is widely used in the transmission system of the following equipment in Tokyo Electron:

Wafer handling systems (such as Load Port, Aligner, Robot Arm)

Rotary table drive in Coater/Developer equipment

Mechanical positioning units for CVD, Etcher, Ashing systems

Wafer lifting platform, electric gate control, conveyor module, etc

4、 Technical parameters (general speculation, specific subject to physical object)
Parameter category description
The common power input is 24V DC, and some interfaces support 5V/12V DC
Output supports multi-channel motor connection ports (2-8 channels, depending on the design)
Signal type: motor drive signal, feedback signal, limit signal, etc
The interface forms are mostly pin and ribbon cables, connector ports
Onboard protection functions include fuses, voltage clamps, short circuit protection, etc
Multiple screws are used to fix the installation structure, and some parts are installed through guide rail slots
