TEL Tokyo Electron 1981-600515-13 Split Screen Display Module

Product manual:

Product model: 1981-600515-13
Manufacturer: Tokyo Electron Ltd. (TEL)

1、 Product Introduction:
TEL 1981-600515-13 Split Screen Display Module
It is a graphical user interface (GUI) video output submodule used in TEL semiconductor devices,
Its main function is to integrate or separate multiple image signals to achieve multi screen display on a single screen,
Used for real-time monitoring of multiple processes or control views.

2、 Main functions:
Function Type Function Description
Integrate and receive multiple image/signal sources (such as cameras and control signals) for video input, and manage them uniformly
Split screen display control displays multiple images on one or more screens in a set proportion
Image switching output can achieve switching between signal sources and adjustment of primary/secondary display
The HMI interface supports visual display of process flow diagrams, parameter curves, alarm information, etc
Synchronous signal processing ensures synchronous output of multi-channel video signals, avoiding screen jumping or misalignment

3、 Applicable equipment scope:
This module may be installed in the following Tokyo Electron semiconductor devices:

Coater/Developer

Etcher equipment

Thin film deposition equipment (CVD, PVD)

Transport system or integration platform (EFEM, Load Port)

Overall control terminal or engineering workstation

4、 Technical characteristics (presumably based on TEL display module universal standards):
Project parameters or description
Input signal type VGA, DVI, HDMI, DisplayPort or TEL custom industrial signal
The output resolution usually supports 1024x768, 1280x1024 or higher resolutions
Split screen mode 2/4/6/8 split screen configurable, supporting picture in picture or grid layout
The control interface may have RS-232, Ethernet, button or touch configuration
Installation method: rack mounted or embedded, installed behind the operation panel or in the control box
The power requirement is usually 12V or 24V DC, with some supporting AC power supply

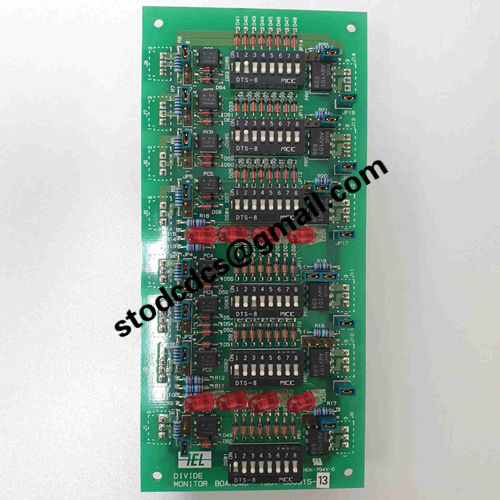

Product details picture:

1981-600515-13
