TEL Tokyo Electron 1D08-000092-13 Communication Board

Brand:TEL Tokyo Electron
Model:1D08-000092-13
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 1D08-000092-13 Communication Board

Product manual:

Product Name:
TEL Tokyo Electron 1D08-000092-13 Communication Board
(Communication Board / Interface Communication PCB)

Product Function Introduction:
This communication board is the core interface module used in Tokyo Electron (TEL) semiconductor equipment for communication connections and data exchange between various modules within the device. Its functions usually include:

Provide communication links between the main control system and lower level modules

Realize data synchronization, status feedback, and command issuance of subsystems within the device

Supports multiple industrial communication protocols, such as RS-232, RS-485, CAN, Ethernet, DeviceNet, Profibus, etc

Integrated signal buffering, electrical isolation, anti-interference processing and other functions

As a communication bridge for subsystems such as I/O boards, control boards, sensor modules, etc

Main application areas:
1. Communication center between the main control system and subsystems
Used for data transmission between device main control units (such as SBC or main controller) and I/O modules, actuators, HMI and other modules

Ensure high-speed and reliable transmission of device action commands and feedback signals between subsystems

2. Communication interface conversion and protocol relay
Provide interface bridging between different protocols (such as RS-232 to TTL, CAN to serial, etc.)

Support cross module or multi subsystem linkage operations

3. Status monitoring and data collection
Transmitting real-time signals from sensors or detection circuits (such as temperature, pressure, position, etc.)

Assist in achieving closed-loop control and process data recording

4. System diagnosis and remote maintenance support
Ability to interface with external PC, HMI, or remote control systems

Support device log upload, remote upgrade, system debugging and other functions

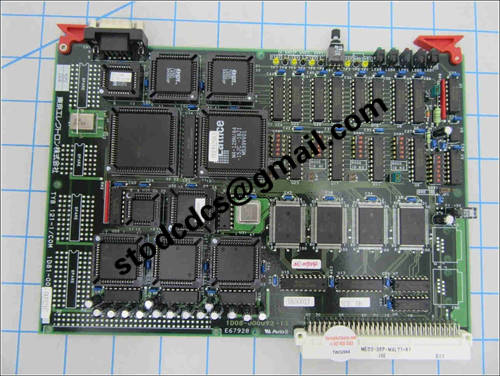

Product details picture:

1D08-000092-13
