TEL Tokyo Electron 2981-600310-12 DC Converter Board

Product manual:

Introduction to TEL Tokyo Electron 2981-600310-12 DC Converter Board
Product definition:
2981-600310-12 is a DC-DC Converter Board,
Used to convert input DC voltage into other required voltage levels within TEL devices, providing stable multi-channel power supply.

Main functions:
Convert the main power input (such as 24V DC) to other voltage outputs (such as ± 12V,+5V, etc.),
Supply internal circuits such as control boards, sensors, communication modules, etc.

Typical application devices:
Applied to the wafer processing equipment of Tokyo Electron,
Such systems as CVD (chemical vapor deposition), Etch (etching), Clean Track (cleaning), ALD (atomic layer deposition), etc.

Power supply target module:
For PLC control board, interface board, IO module, sensor unit
Low voltage devices such as signal collectors provide stable power supply.

Product features:

Multi channel DC output (may have ± 12V,+5V, etc.)

Equipped with overvoltage, overcurrent, and short-circuit protection

High conversion efficiency, low heat generation

Modular board structure for easy installation and maintenance

Installation location:
Generally installed inside the control power rack or main control cabinet, close to the main control power output area or IO distribution board.

Application scenarios:

Power supply for circuit boards with different logic level requirements in precision control systems

Provide isolated power supply for photoelectric sensors, display screens, controllers, etc

Plays a role in isolating power supply voltage, suppressing interference, and improving equipment electrical safety

matters needing attention:

Before replacing or disassembling, be sure to disconnect the main power supply

Ensure good circuit grounding to avoid module damage caused by floating ground

Try to avoid long-term full load operation to prevent overheating from affecting the lifespan

Product details picture:

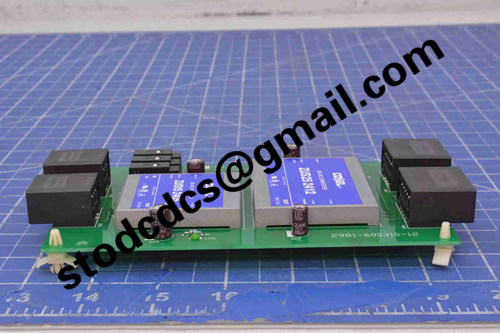

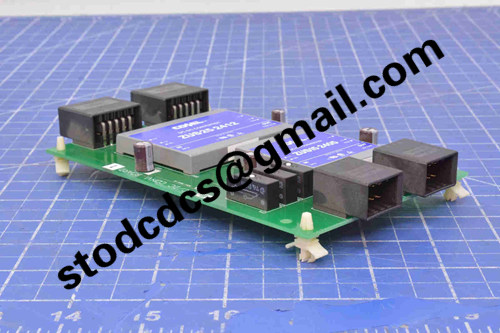

2981-600310-12
