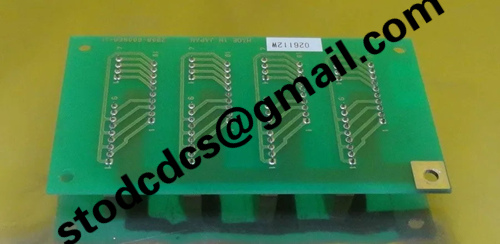

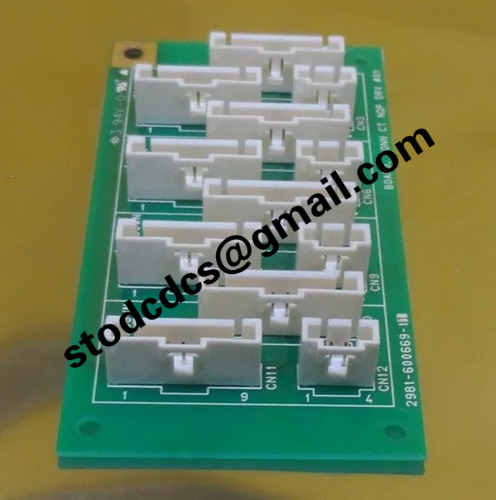

TEL Tokyo Electron 2981-600669-11 Terminal Block

Brand:TEL Tokyo Electron
Model:2981-600669-11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 2981-600669-11 Terminal Block

Product manual:

Introduction to TEL Tokyo Electron 2981-600669-11 Terminal Block
Product definition:
2981-600669-11 is a terminal block used for Tokyo Electron semiconductor equipment,
Used for electrical connection, distribution, and organization of multi-core cables within devices, it serves as a relay interface between signal and power lines.

Main functions:
Realize the tapping, connection, insulation, and fixation of power lines or control signal lines,
Ensure that the wiring connections are clear, reliable, and easy to maintain.

Applicable device types:
Various wafer processing equipment commonly used in TEL, including CVD, Etch, Track systems, etc,
Installed on control cabinets, power supply areas, distribution boards, or signal interface boards.

Connection signal type:

DC power cord (such as+24V,+12V)

Control line (switch quantity, sensor feedback)

Grounding wire (FG, GND)

Termination of communication cables or shielded wires (some models)

Product features:

Multi channel wiring positions arranged neatly

Clearly labeled for quick line checking

High insulation and voltage resistance, suitable for industrial electrical environments

Can be installed and used in conjunction with accessories such as terminal caps, shields, rails, etc

Installation location:
Usually installed on the internal guide rails of the control cabinet, near the control board, power board, or external interface wiring harness integration area.

Typical application scenarios:

Power/signal transfer between motor drive module and controller

Sensor (such as temperature, air pressure) signal feedback contact

Power supply tap points for equipment such as solenoid valves and relays

Equipment door interlock, safety emergency stop circuit connection point
