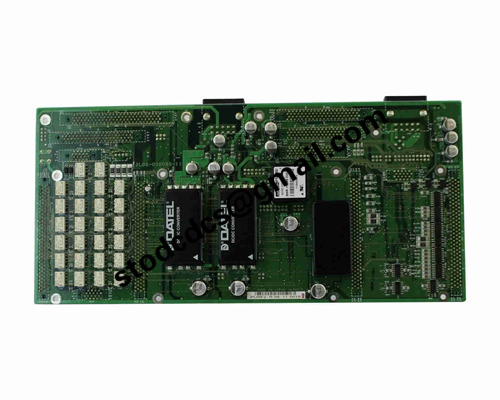

TEL Tokyo Electron 2L81-050085-51 Analog Input Electronic Module

Brand:TEL Tokyo Electron
Model:2L81-050085-51
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 2L81-050085-51 Analog Input Electronic Module

Product manual:

Product model: 2L81-050085-51
Manufacturer: Tokyo Electron Ltd. (TEL)
Component category: Signal acquisition module/Analog input module

1、 Product Overview:
2L81-050085-51 is an electronic module used in Tokyo Electron equipment for collecting and processing analog signals.
Its main function is to integrate data from various sensors such as temperature, pressure, flow rate, position, etc

This module is a key component for implementing fine process control and process monitoring in equipment.

2、 Main functions:
Function module description
Analog signal acquisition supports multi-channel analog input, collecting analog signals such as voltage and current
Signal conditioning includes circuits such as filtering, amplification, and isolation to ensure stable and reliable signals
Sampling rate control can configure sampling frequency to meet different process control requirements
The communication interface transmits digital signals to the main control system through a bus or interface

3、 Technical parameters (based on the general specifications of TEL analog input module):
Project parameters or description
Input type: Voltage input (typical 0-10V), current input (4-20mA)
Multiple input channels, commonly ranging from 8 to 16 channels
Resolution 12 bit or 16 bit ADC
Sampling rate can reach several kHz, supporting high-speed sampling
Signal isolation optocoupler or magnetic isolation protection input port
High input impedance, suitable for sensor signal access
The power requirement is 5V, 12V, or 24V DC, depending on the specific equipment requirements
Connection method: plug-in connector or backplane interface

4、 Typical applications:
Application scenario description
Temperature sensor signal acquisition, thermocouple, thermal resistance and other temperature measurement signal input
Pressure monitoring collects signals from pressure sensors in chambers or pipelines
Flow measurement receiving quality, analog output of flow controller or flow meter
Displacement or velocity feedback receiving position sensor or velocity sensor signal
Equipment status monitoring collects various analog signals from equipment to assist in diagnosis and control
