TEL Tokyo Electron 2L81-050135-12 Connection Board

Product manual:

1、 Basic Information
Product model: 2L81-050135-12

Product Name: Connection Board/Interface PCB

Manufacturer: Tokyo Electron Limited (TEL, Tokyo Electronics, Japan)

Module type: Signal/Power Relay Connection Board

Version number: -12 (indicating this is the 12th edition or a specific revised version)

2、 Main functions

Function type description
Signal connections provide multiple standard or customized interfaces for transmitting data/control signals between modules
Power distribution distributes multiple output paths from the main power supply or control power supply for use by each submodule
Interface relay enables wiring transition and signal organization between external cables and internal motherboards/modules
Layout adaptation connects connectors and cables of different specifications to standard slots or motherboards

3、 Application scenarios
This type of connection board is widely used in various TEL devices and may be specifically applied to the following systems:

ACT series coating and developing equipment

Used for cable routing and integration between control modules, sensors, and actuators

Support quick connection between sensors, IO boards, power boards, and main control boards

Tactras/Trias etching and deposition equipment

Used as a signal relay and power bridge for submodules such as gas pathways, solenoid valves, vacuum systems, etc

EFEM/Load Port System

Used for wiring integration between handling controllers, access control systems, and robotic arm control modules

4、 Module features
Multi channel and multi interface layout to meet the connection requirements of complex systems

Has good physical structure adaptability and can be installed on TEL dedicated backboards or frames

Using high-quality PCB technology and industrial grade connectors to ensure long-term stable contact

Version number "-12" indicates that this connection board has undergone optimization and upgrading in terms of circuit, interface, or mechanical structure

Easy to replace and maintain, it is one of the common standard auxiliary components in TEL systems

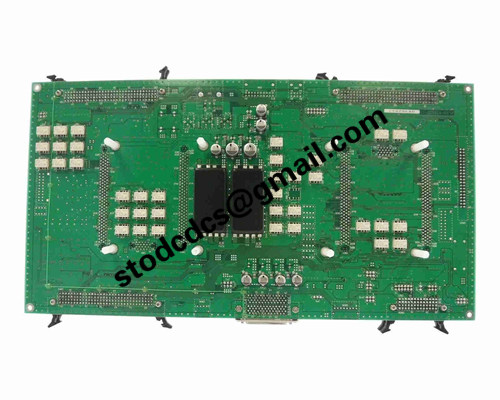

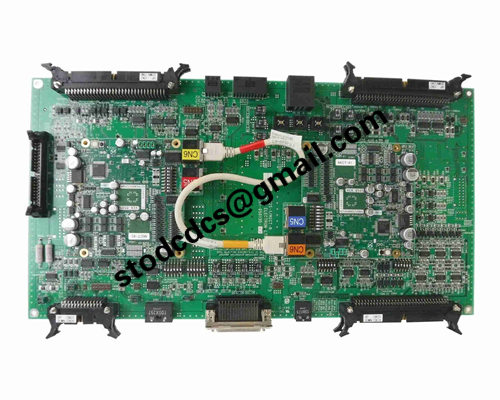

Product details picture:
