TEL Tokyo Electron 3208-000029-12 power module

Brand:TEL Tokyo Electron
Model:3208-000029-12
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 3208-000029-12 power module

Product manual:

Product Name:
TEL Tokyo Electron 3208-000029-12 power module
(Power Supply Module)

Product type and function:
This module is a dedicated power module in Tokyo Electron semiconductor equipment,
The main responsibility is to provide stable DC/AC power output for the control circuit, actuator, sensing system, etc. of the equipment, with the following functional characteristics:

Voltage conversion (such as AC-DC, DC-DC)

Power filtering and voltage stabilization to ensure output voltage stability

Provide protection mechanisms for short circuits, overcurrent, overvoltage, etc

Some versions may support multiple output power supply

Main application areas:
1. Power supply system for semiconductor manufacturing equipment
Power supply for process modules such as Etcher, CVD/PVD, Lithography, etc

Provide low-voltage DC power supply (such as+5V,+12V,+24V) for the main control board, I/O modules, sensors, actuators, etc

2. Control system power core
As the core power source for key modules such as PLC, main controller, and motor driver inside TEL equipment

Support long-term stable operation and adapt to high-precision manufacturing requirements

3. Communication and interface power supply guarantee
Power supply to RS-232/RS-485 interface, optoelectronic isolation module, and network communication module

Ensure that system data transmission is not affected by power fluctuations

4. Vacuum system and actuator support
Power supply for external devices such as vacuum pump control circuit, MFC (Mass Flow Controller), solenoid valve, etc

Capable of anti-interference and high reliability

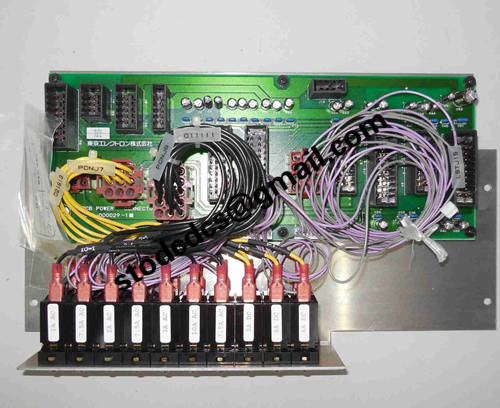

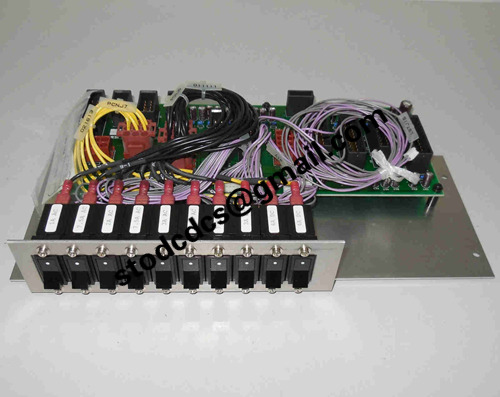

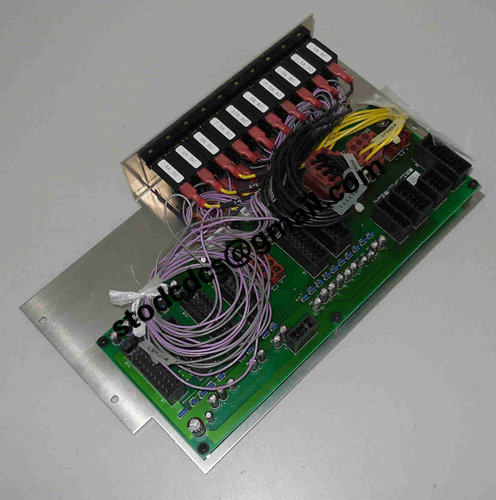

Product details picture:

3208-000029-12
