TEL Tokyo Electron 3281-000080-12 Power Distribution Board

Product manual:

Product model: 3281-000080-12
Manufacturer: Tokyo Electron Ltd. (TEL)
Component Category: Power Management Module/Power Distribution Module

1、 Product Overview:
The 3281-000080-12 power distribution board is a critical power management component in TEL semiconductor equipment,
Responsible for allocating input power to various sub modules or components of the device in a reasonable manner,
Ensure stable and appropriate voltage and current supply for each part.

This board has multiple power outputs and protection functions to ensure the safe and stable operation of the equipment,
At the same time, prevent equipment damage caused by abnormal power supply.

2、 Main functions:
Function module description
Power distribution distributes the main power input to multiple output ports to supply different modules
Overload protection has short-circuit protection and overcurrent protection to prevent power supply abnormalities
Voltage regulation maintains stable output voltage and avoids voltage fluctuations affecting equipment performance
State monitoring supports power status monitoring and alarm signal output
Multiple power input and output interfaces for easy connection and maintenance

3、 Technical parameters (based on the general specifications of TEL power distribution board):
Project parameter description
The input voltage is usually 24V DC or other industry standard voltage
Multi channel output voltage, commonly 5V, 12V, 24V DC
The maximum output current is based on module design, typically ranging from several amperes to over ten amperes
Protection mechanisms include short circuit protection, overload protection, and over temperature protection
Interface forms include screw terminals, plug-in connectors, etc
Size and installation method suitable for fixed installation inside TEL cabinets or equipment

4、 Typical applications:
Power supply to control motherboard, interface module, sensor module, etc

Ensure reliable and stable power supply during equipment operation

Automatic power-off protection for critical components in case of abnormal power supply

Power status indication during equipment maintenance and troubleshooting

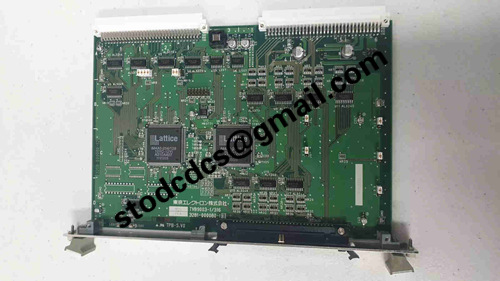

Product details picture:

3281-000080-12
