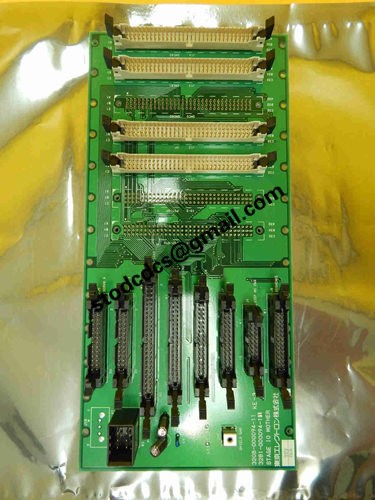

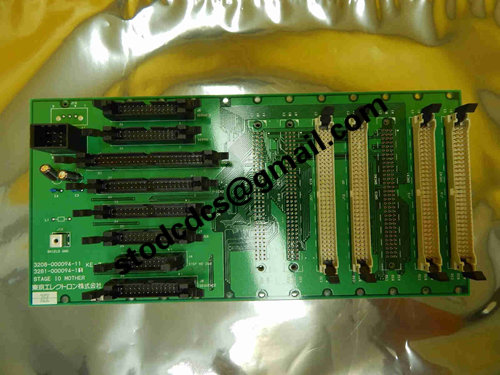

TEL Tokyo Electron 3281-000094-11 Analysis Module

Brand:TEL Tokyo Electron
Model:3281-000094-11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 3281-000094-11 Analysis Module

Product manual:

TEL Tokyo Electron 3281-000094-11 Analysis Module
It is a functional electronic module used by Tokyo Electron (TEL) in semiconductor equipment,
Mainly responsible for data collection, status analysis, and feedback signal processing during equipment operation,
Widely used in key control systems of wafer manufacturing equipment.

1、 Basic Product Information
Product Name: Analysis Module

Product model: 3281-000094-11

Manufacturer: Tokyo Electron Ltd

Module type: Functional analysis circuit board or module component

2、 Functional purpose
Equipment status monitoring and analysis

Real time collection of operational data from sensors, actuators, and other electronic control modules;

Process and logically judge signals such as temperature, air pressure, vacuum degree, flow rate, and voltage.

Data analysis and abnormal feedback

Having preliminary data processing capabilities, able to locally determine abnormal states (such as overheating, insufficient gas, etc.) on the device;

Feedback the analysis results in the form of digital signals to the main control system to achieve alarm or linkage control.

Assist in control decision-making

Support communication with the main control system to assist in achieving process adjustments and equipment linkage functions;

Helps to improve the real-time and precision of process control.

3、 Application Fields
Semiconductor front-end process equipment

Suitable for coating and developing equipment, etching machines, cleaning systems, vacuum chambers, and other equipment;

Used for monitoring and analyzing process operation status to ensure stable output.

Process Control and Feedback System

Installed at critical locations in the process flow, used to collect signals such as pressure, temperature, gas flow rate, and position;

Collaborate with I/O modules and controllers to achieve closed-loop control.

Equipment maintenance and system debugging

Engineers can obtain equipment operation data through this module for status diagnosis and parameter adjustment;
