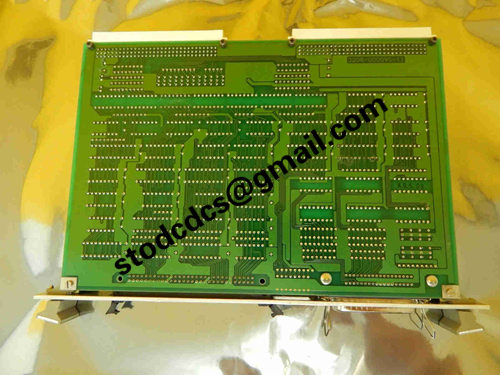

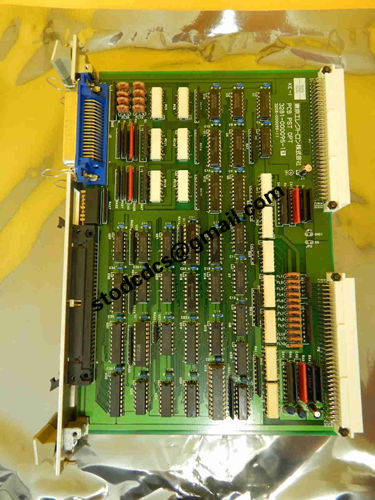

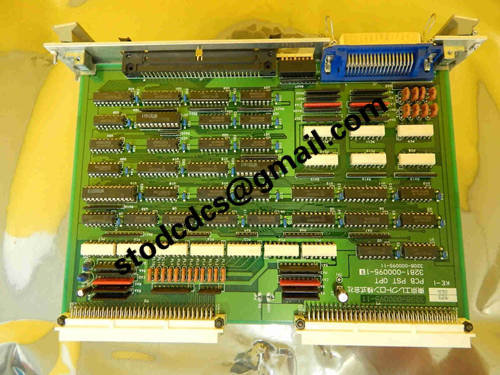

TEL Tokyo Electron 3281-000095-13 Printed Circuit Board

Brand:TEL Tokyo Electron
Model:3281-000095-13
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 3281-000095-13 Printed Circuit Board

Product manual:

1、 Basic Information
Product model: 3281-000095-13

Product Name: Printed Circuit Board (PCB)

Manufacturer: TEL (Tokyo Electron Limited, Tokyo Electronics, Japan)

Product Category: Printed Circuit Board for Signal Processing/Control Applications

Revision version: -13 (representing the 13th version or hardware revision of the board)

2、 Main functions (inferred based on TEL numbering rules and application background)
Functional category description
Signal transmission is used for control signal or data communication transmission between internal modules of equipment.
Control logic bridging may serve as an interface bridge between the main control board and subordinate execution units.
IO expansion supports digital or analog input/output signal expansion, connecting sensors or actuators.
Auxiliary communication may carry CAN, serial port (RS-232/485), or TEL dedicated communication protocol connection functions.

3、 Typical application scenarios
This PCB board may be widely used in the following TEL semiconductor manufacturing equipment:

Photolithography pre-processing and post-processing equipment (such as ACT series Coater/Developer)

Etching equipment (such as Tactras series)

CVD/ALD thin film deposition equipment

Wafer handling module, vacuum loading port system

In these systems, circuit boards may be used to connect and drive the following sub components:

Temperature/pressure sensor

Actuators (solenoid valves, motors)

Heating table or cooling device

Status indicator or control button panel

4、 Technical features
Industrial grade multi-layer PCB, suitable for high stability operating environment in clean rooms

On board integration of high-density pins, logic circuits, or signal isolation components
