TEL Tokyo Electron 381-648286-12 Digital Input Card

Product manual:

TEL Tokyo Electron 381-648286-12 Digital Input Card
It is a digital signal acquisition module specifically designed for TEL semiconductor manufacturing equipment,
Used to receive and process ON/OFF signals from various parts of the device,
Implement control tasks such as detecting equipment operating status, process interlocking, and triggering alarms.

1、 Basic Information
Product Name: Digital Input Card (DI Card)

Product model: 381-648286-12

Manufacturer: Tokyo Electron Ltd. (TEL)

Board type: Digital Input (DI) module

Typical locations: within equipment control cabinets, input/output interface frameworks, and electrical partition modules

2、 Main functions
Switch signal acquisition (Digital Input)

Receive status signals (such as 0/24V DC) from buttons, travel switches, proximity sensors, limiters, safety door locks, etc.

Determine whether the equipment has reached the specified process state or safety conditions.

Status feedback processing

Feedback the input signal to the main control system (such as PLC, embedded controller) for driving logic judgment and automatic processes.

Support multi-channel real-time scanning to ensure response speed.

Interlocking and alarm triggering

Changes in input signals can trigger equipment interlocking logic or alarm processes, ensuring safe operation.

System interlocking mechanism

Collaborate with digital output cards and the main control board to implement permission/prohibition control logic for device actions.

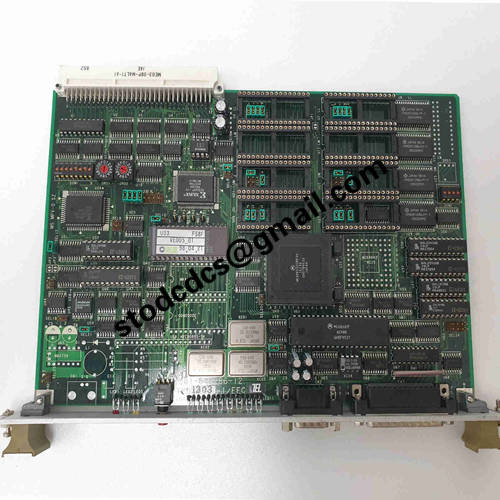

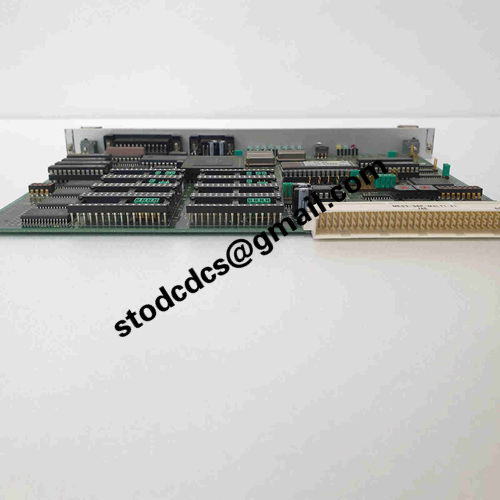

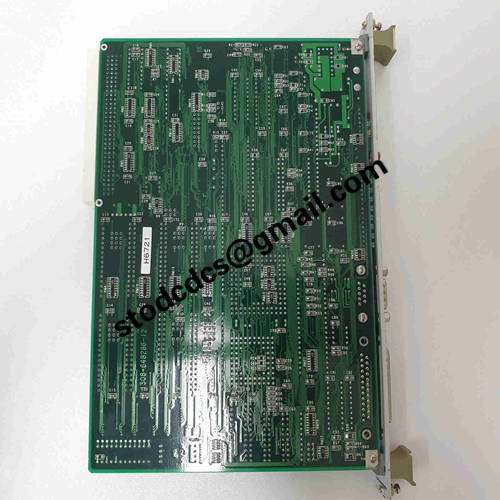

Product details picture:
