TEL Tokyo Electron 3884-200219-11 Analysis Board
Brand:TEL Tokyo Electron
Model:3884-200219-11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
TEL Tokyo Electron 3884-200219-11 Analysis Board
Product manual:
Product model: 3884-200219-11
Manufacturer: Tokyo Electron Ltd. (TEL)
Component Type: Signal Analysis Module/Processing Board/Function Board
1、 Product Overview:
The 3884-200219-11 analysis board is a specialized functional module used in Tokyo Electron (TEL) semiconductor equipment,
Its main function is to collect analog or digital signals from sensors, probes, or process systems
Analyze and preliminarily process, and feedback the results to the upper control system or for local control judgment.
This board is usually installed in a control cabinet or signal processing unit,
It is one of the key links to achieve real-time monitoring of equipment and process control accuracy.
2、 Core functions:
Function module description
Signal acquisition and reception of multiple input signals, supporting analog quantities (such as voltage/current) or digital quantities
Data processing involves hardware level or embedded processing functions such as filtering, amplification, conversion, and comparison
When the monitoring data is abnormal, the alarm trigger can drive the alarm output or stop the corresponding process action
3、 Possible technical parameters (reference TEL analysis board general design speculation):
Project parameter range (typical)
Input signal types include analog signals (0-10V, 4-20mA), digital signals, thermocouples, etc
Number of signal channels 4-16 channels (depending on model)
Resolution 12-16 bit ADC (analog signal)
Data update rate supports high-speed sampling (such as 1-10 kHz)
The communication interface transmits data through TEL internal bus or RS232/RS485/EtherCAT
The common power input is 5V or 12V DC
Card structure plug-in or with edge connectors, suitable for TEL control racks
4、 Typical application scenarios:
Application system analysis function
Vacuum system collects and analyzes the trend of changes in chamber vacuum pressure
Sampling and curve analysis of thermocouple or thermistor signals by temperature control system
Analysis of MFC (Mass Flow Controller) Signal Stability in Flow Monitoring Unit

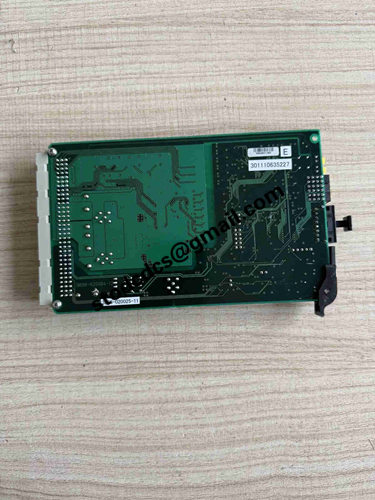

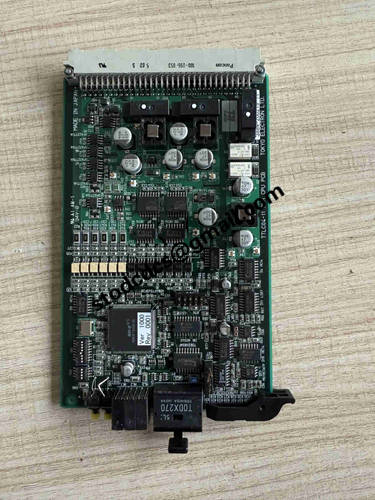

Product details picture:
