TEL Tokyo Electron 3D81-000037-41 Signal Relay Module

Product manual:

1、 Basic Information
Product model: 3D81-000037-41

Product Name: Signal Relay Module

Manufacturer: Tokyo Electron Limited (TEL, Tokyo Electronics, Japan)

Module Type: Electrical Control Module/Isolation Relay Board

Version number: -41 (representing the 41st version or customized version of the module)

2、 Main functions

Functional classification description
Signal amplification driver converts weak control signals (from the main control or PLC) into high current control signals
State switching controls the on/off status of equipment such as solenoid valves, contactors, indicator lights, alarms, etc
Protective function to prevent external voltage spikes and surge currents from directly affecting the main control system
Logic control supports normally open (NO)/normally closed (NC) control logic, suitable for various work scenarios

3、 Typical application areas

Adhesive coating and developing equipment (such as ACT series)

Electrical execution circuit for controlling actions such as spraying system, platform lifting, drying and heating

Etching and deposition equipment (such as Tactras/Trias series)

Control key execution units such as vacuum valves, gas flow path selectors, power switches, etc

Vacuum transmission module/Load Port system

Implement switch isolation control for door control systems, electromagnetic door locks, and pneumatic control components

4、 Module features
Using high-quality relay components to ensure long switching life and fast response

Each channel is independently isolated to prevent signal crosstalk and interference conduction

Multiple input control points and output switch points can be configured to adapt to complex control logic

Hardware version '-41' is usually a device specific version, suitable for specific systems (such as ACT12 fourth generation)

Can be embedded into standard 19 "cabinets or equipment module frames for easy wiring and replacement

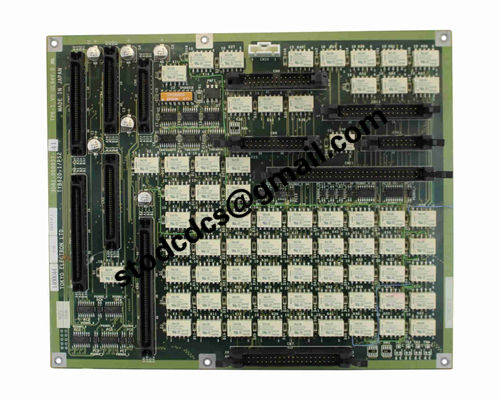

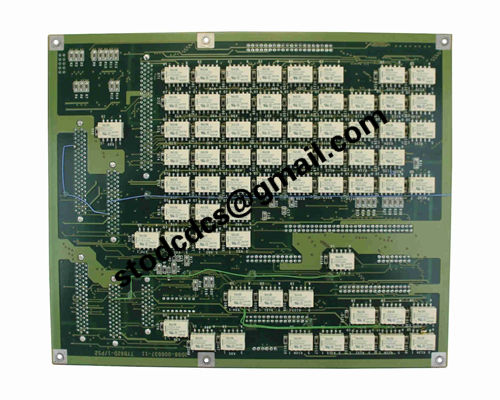

Product details picture:
