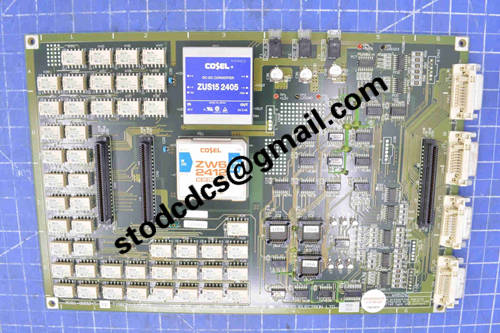

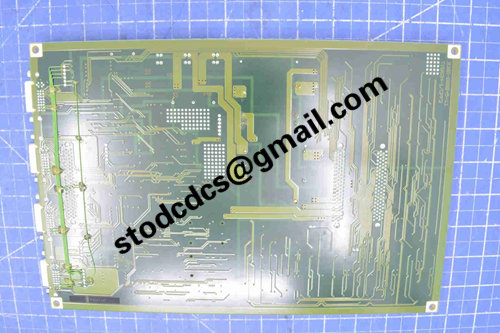

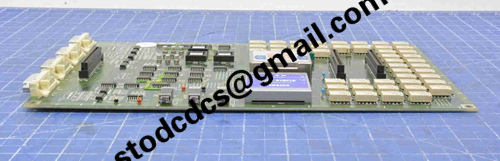

TEL Tokyo Electron 3D81-000045-12 PCB board

Brand:TEL Tokyo Electron
Model:3D81-000045-12
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 3D81-000045-12 PCB board

Product manual:

Introduction to TEL Tokyo Electron 3D81-000045-12 PCB Board
1、 Basic Information
Model: 3D81-000045-12

Name: Processor PCB

Manufacturer: Tokyo Electron Ltd. (TEL)

Applicable equipment: mainly used for Etcher systems in TEL semiconductor manufacturing equipment, such as T-3044SS, etc

Material standard: Complies with industrial grade flame retardant standards to ensure safety and reliability

Origin: Made in Japan

2、 Main functions
Signal Processing
Responsible for signal acquisition, amplification, filtering, and conversion of internal sensors and actuators in the equipment.

data transmission
As the core module, it transmits control instructions and status information between various subsystems of the device.

system control
Support the start, operation, and stop control of devices to achieve automated management of process flow.

3、 Typical applications
Plasma etching equipment (Etcher)

Chemical Vapor Deposition Equipment (CVD)

Atomic layer deposition equipment (ALD)

This PCB board is a critical processor module in the equipment, ensuring the normal and stable operation of the device.

4、 Attention to use
When replacing, it is necessary to ensure compatibility with the device model to avoid equipment failure caused by model mismatch.

Strictly follow the instructions of the equipment manufacturer during installation, and correctly fix and connect the wiring.

Regularly check the status of the circuit board to prevent dust and corrosion from affecting performance.
