TEL Tokyo Electron 3D81-000098-V1 Network Board

Product manual:

Product model: 3D81-000098-V1
Name: Network Board
Manufacturer: Tokyo Electron Ltd. (TEL)
Component Category: Communication Interface Module/Network Communication Board

1、 Product Overview:
The 3D81-000098-V1 network board is a key module used in TEL semiconductor equipment to achieve internal and external network communication.
This board is responsible for data transmission and reception, network protocol conversion, and communication management, ensuring that equipment and control systems
Efficient and reliable connection of upper computer and other peripheral devices.

This network board typically supports multiple industrial communication protocols and is suitable for device networking monitoring, remote diagnosis, and data collection.

2、 Main functions:
Function module description
Network communication supports communication interfaces such as Ethernet, industrial Ethernet, or proprietary protocols
Protocol conversion enables data conversion and adaptation between different communication protocols
Data buffering and caching for data transmission to ensure communication stability
Status monitoring provides communication status indication and fault alarm function
Connection management manages the connection and disconnection of network interfaces, supports hot swapping

3、 Technical parameters (speculation):
Project Description
Network interface RJ45 Ethernet interface or industrial interface
Communication speed 10/100/1000 Mbps (depending on specific model support)
Supports protocols such as TCP/IP, UDP, Modbus TCP, Profinet, etc. (depending on device requirements)
The power requirement is 5V/12V/24V DC, depending on the equipment
Installation method: plug-in or rack mounted installation

4、 Application scenarios:
Network connection between equipment and central control system of production line

Remote monitoring and diagnostic data transmission

Data sharing and process parameter synchronization between devices

Real time control system and monitoring system communication interface

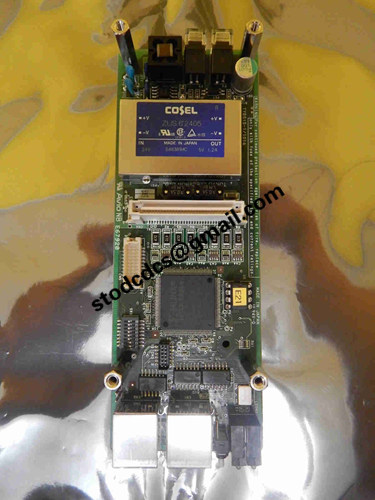

Product details picture:
