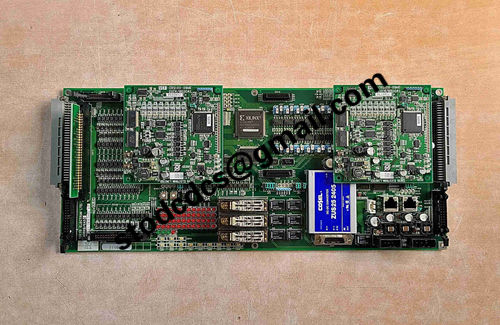

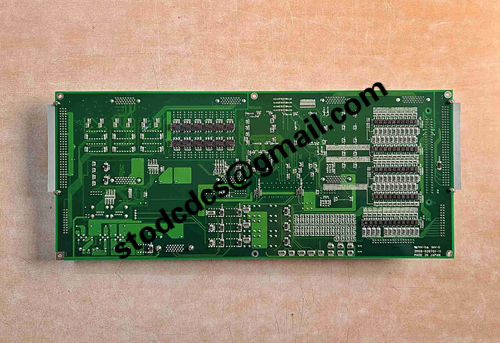

TEL Tokyo Electron 3M80-001585-12 Printed Circuit Board

Brand:TEL Tokyo Electron
Model:3M80-001585-12
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 3M80-001585-12 Printed Circuit Board

Product manual:

Product Name: 3M80-001585-12 Printed Circuit Board
Manufacturer: Tokyo Electron Ltd
Product type: Printed Circuit Board

1、 Product Overview
3M80-001585-12 is a dedicated circuit board used for system control or signal transmission in Tokyo Electron semiconductor manufacturing equipment,
It may be installed in the sub control unit of the device to perform functions such as partial logic control, interface management, or signal conversion.

2、 Main functions (depending on specific usage)
Electronic component carrier

Provide a multi-layer circuit structure that supports and connects components such as chips, resistors, capacitors, interface terminals, etc.

Control and Interface Logic

Possible integration of basic logic circuits for signal processing and communication relay between device modules.

Signal acquisition and output

Receive command signals from sensors or control systems and send control signals to actuators.

System module connection bridge

Implement data and power connections between the main control system and sub modules (such as motor drivers, air valves, I/O interfaces).

3、 Applicable equipment scope (refer to TEL equipment structure)
This circuit board is commonly used in the following equipment systems of Tokyo Electron:

Etcher equipment

Coater/Developer

Thin film deposition equipment (CVD, PVD)

Sub modules such as wafer handling system and alignment system

4、 Technical parameters (typical range, reference to similar PCBs)
Parameter category description
PCB type multi-layer printed circuit board (4-8 layers)
Working voltage 5V/12V/24V DC (depending on the electrical system of the equipment)
Interface type: onboard cable interface, connector, multi pin plug-in
Installation method: screw fixed or slot inserted installation
Materials and processing: FR4 substrate with tin spray or gold finger treatment on the surface
Protective features with basic anti-static and anti-interference design
