TEL Tokyo Electron 3M80-001585-15 Printed Circuit Board

Product manual:

TEL Tokyo Electron 3M80-001585-15 Printed Circuit Board (PCB)
It is a customized control board used in Tokyo Electron semiconductor manufacturing equipment,
Commonly used for functions such as signal processing, power distribution, inter module communication, or actuator control,
It is widely used in various equipment platforms such as etching (Etch), deposition (CVD), cleaning (Wet Bench), and EFEM handling systems.

1、 Basic Information
Project Description
Product model 3M80-001585-15
Product Name Printed Circuit Board (PCB)
Manufacturer Tokyo Electron Ltd. (TEL)
Installation position control host rack/I/O distribution control box/power box internal
Control subsystems in equipment platforms such as TEL Unity, Trias, Telius Pro, Expedias, Clean Track, etc

2、 Main functions (speculated)
As this model is a customized TEL board, its functionality needs to be determined based on the actual system usage location. This PCB board may perform one or more of the following functions in the TEL control system:

1. Signal relay and transmission
Implement signal distribution between the main control board and multiple subordinate modules (such as sensors, I/O modules, servo drivers, etc.);

Plays an interface bridging role, realizing level conversion, linear regulation, etc.

2. Control signal distribution
Used for outputting control signals from the future autonomous control board to different execution modules according to preset logic;

Support relay output, TTL signal distribution, logic gate driver and other functions.

3. Power handling and protection
Allocate DC power from the main power module to sub modules (such as+5V,+12V,+24V);

It includes functions such as voltage stabilization circuit, overvoltage/overcurrent protection device, power status indication, etc.

4. Multi channel signal interface board
Connect with commonly used TEL modules (such as 3M80, E244, BX81 series) through a backplane or ribbon cable;

Serve as a communication interface and signal integration platform between multiple boards.

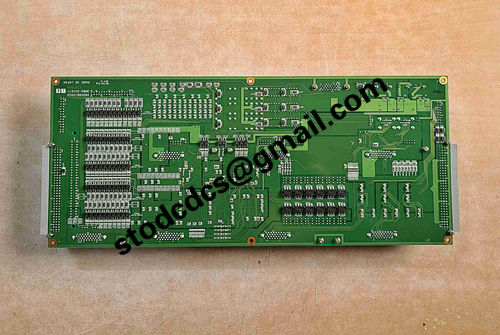

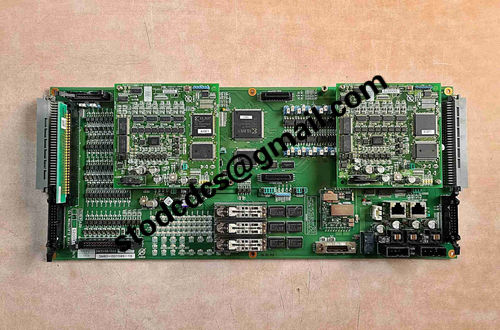

Product details picture:

3M80-001585-15
