TEL Tokyo Electron 3Z81-000011-V2 Analysis Board

Product manual:

TEL Tokyo Electron 3Z81-000011-V2 Analysis Board
It is a key functional module used for signal analysis, data acquisition, and processing in TEL semiconductor equipment,
Usually used for detecting process parameters, monitoring equipment status, or conducting system diagnostics.

1、 Basic Information
Product Name: Analysis Board/Signal Analysis Module

Product model: 3Z81-000011-V2

Manufacturer: Tokyo Electron Ltd. (TEL)

Board type: Signal acquisition and analysis board

Application scope: Process parameter monitoring, fault diagnosis, and data processing in semiconductor manufacturing equipment

2、 Main functions
signal acquisition

Collect analog or digital signals from sensors (pressure, temperature, flow rate, voltage, etc.).

Filter, amplify, and convert the input signal in preparation for subsequent processing.

Data analysis and processing

Real time processing of collected signals and extraction of key process parameters.

Perform fault detection and warning, and support equipment maintenance.

communication interface

Transfer the analysis results to the main control system or upper computer to achieve data sharing and remote monitoring.

Diagnostic and calibration functions

Support system self diagnosis to ensure data accuracy.

Support on-site calibration and parameter adjustment.

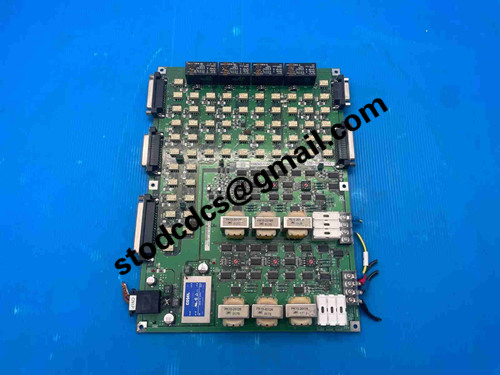

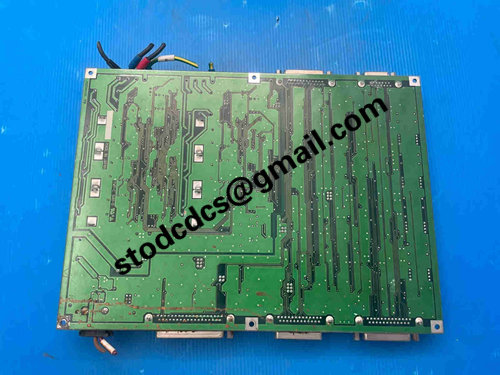

Product details picture:

3Z81-000011-V2
