TEL Tokyo Electron 5044-000360-13 Additional Board

Brand:TEL Tokyo Electron
Model:5044-000360-13
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

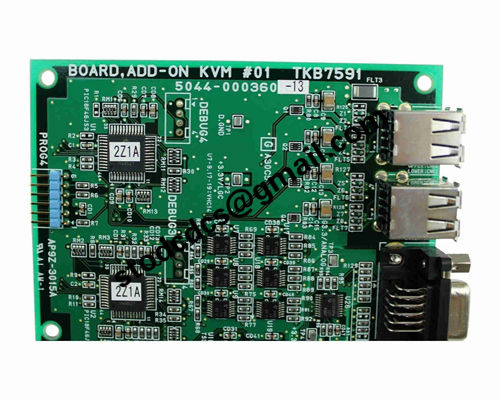

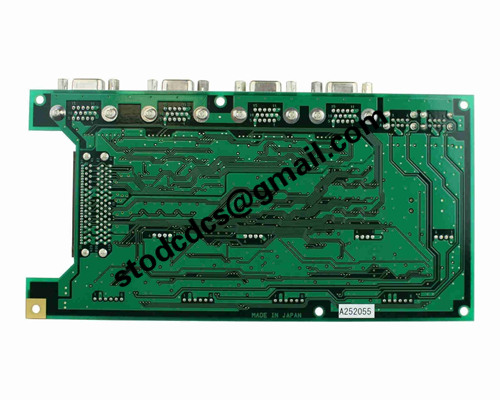

TEL Tokyo Electron 5044-000360-13 Additional Board

Product manual:

Product model: TEL Tokyo Electron 5044-000360-13
type: Add on Board/Expansion Board
Functional positioning: Used to expand the functions of the main control system, achieve additional signal processing or interface support

1、 Product Function Overview:
The 5044-000360-13 add-on board is an extended functional module developed by Tokyo Electron (TEL) to support its semiconductor equipment control system.
This board is usually used as an accessory component of the main control system, connected to the motherboard through a standard slot,
Provide additional I/O channels, signal conditioning circuits, communication interfaces, or specific functional circuits,
Thus enhancing the overall system's control capability and flexibility.

2、 Main application areas:
Main control system function expansion

Provide more digital or analog input/output channels for the main control card to support additional sensors, actuators, or device units.

Customized interface adaptation

According to device configuration requirements, provide extensions for communication interfaces such as RS-232, CAN, Ethernet, etc. to meet specific signal protocol requirements.

Specific process signal processing

In certain process flows (such as gas control, temperature control, voltage regulation), specialized signal conditioning, filtering, or isolation functions are performed.

Modular control system support

Cooperate with other TEL modules (such as main control board, I/O module, display control board) to enhance the overall scalability and compatibility of the system.

Fault handling and system debugging assistance

Some add ons support test point output and self diagnostic functions, which are helpful for device debugging, operation status monitoring, and fault analysis.
