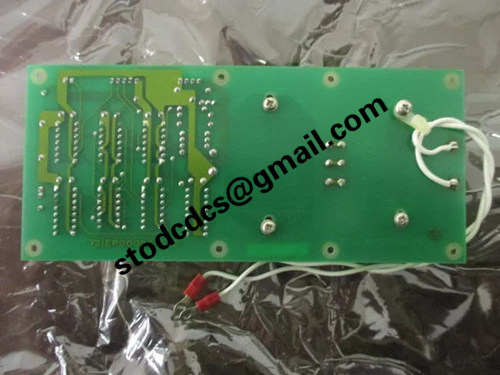

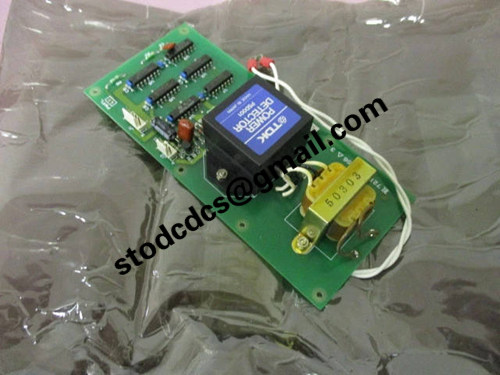

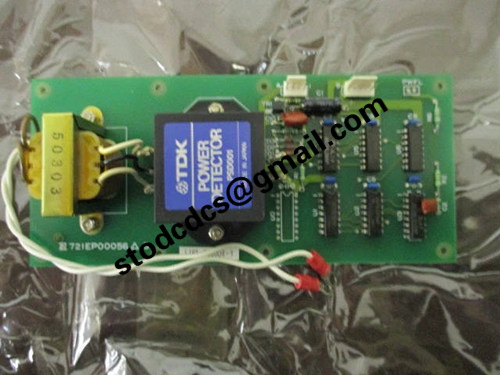

TEL Tokyo Electron 81-69004-1 Motor Unit Distribution Board

Brand:TEL Tokyo Electron
Model:81-690004-1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron 81-69004-1 Motor Unit Distribution Board

Product manual:

TEL Tokyo Electron 81-69004-1 Motor Unit Distribution Board
It is a specialized electrical control board designed specifically for Tokyo Electron semiconductor equipment,
Mainly used to distribute the power and control signals output by the main control system or power supply system to multiple motor drive units or motor control modules,
To achieve multi axis collaborative action and high-precision motion control.

1、 Basic Information
Project Content
Product model 81-69004-1
Product Name: Motor Distribution PCB
Manufacturer Tokyo Electron Ltd. (TEL)
Installation method: screw fixed/control cabinet inner board card type
Typical application locations include motor drive unit areas in EFEM, load ports, vacuum chamber handling systems, or coating and developing devices

2、 Core functions
✅ 1. Power distribution
Distribute the main power supply (such as 24V DC, 48V DC) to multiple servo drivers or stepper motor controllers;

Each route may be equipped with independent fuses and power status indicators.

✅ 2. Control signal distribution
Distribute the start stop, direction, pulse and other control signals output by the main controller (such as BX81 or E244 system) to multiple motor controllers;

Support multi axis linkage control logic structure.

✅ 3. Integration of status monitoring and feedback
Collect the working status of each motor drive unit (such as operation, alarm, and arrival signals) and provide feedback to the main control system;

Realize centralized management of motor status.

✅ 4. Electrical isolation and protection
Channel optocoupler isolation;

Onboard power protection, surge absorption, short circuit protection.
