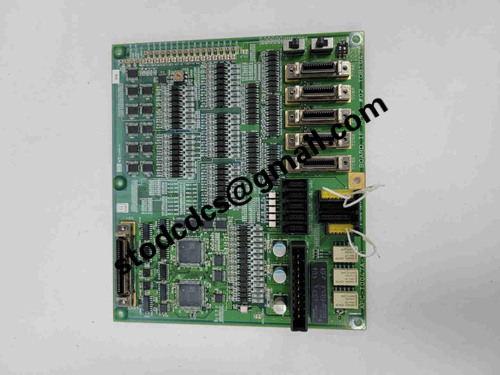

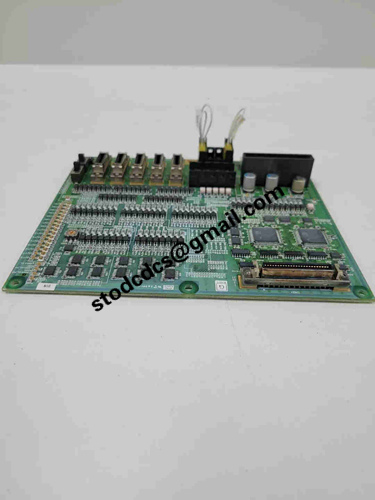

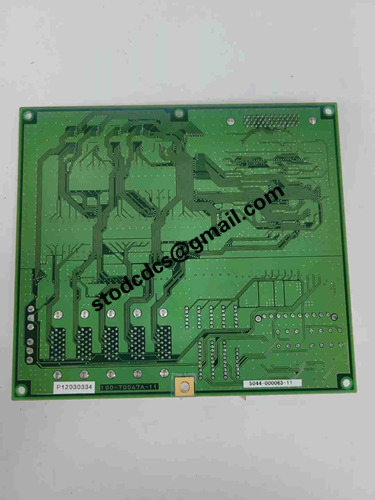

TEL Tokyo Electron APC-T0047A-11 connector module

Brand:TEL Tokyo Electron
Model:APC-T0047A-11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron APC-T0047A-11 connector module

Product manual:

Product Name: APC-T0047A-11 Connector Module
Manufacturer: Tokyo Electron Ltd
Product type: Connector Module

Brief introduction
APC-T0047A-11 is a connector module used in Tokyo electronic semiconductor equipment,
The main function is to provide reliable electrical connection interfaces for signal transmission, module interconnection, and power supply extraction.
It is usually installed in the system's backplane, I/O board, or device control unit as a connecting bridge between different circuit boards or subsystems.

2、 Function and Function
Signal Relay and Distribution

As an intermediate connection unit between the control system and sub modules, it transmits digital or analog signals.

Standardized interface conversion

Standardize connectors and ports of different specifications to simplify wiring and plugging.

Enhance signal integrity and anti-interference

Internally, there may be shielding layers or filtering devices designed to stabilize signal quality.

Mechanical fixation and safe plugging and unplugging

Provide a sturdy and reliable connection structure to ensure stable interfaces under high-frequency plugging and unplugging.

3、 Typical application areas
The APC-T0047A-11 connector module is widely used in the following Tokyo Electron semiconductor devices:

PVD/CVD thin film deposition equipment

Etcher dry etching system

Photoresist Coater/Developer Coating and Developing System
