TEL Tokyo Electron E240-000057-11 Controller Cooling Fan Card

Brand:TEL Tokyo Electron
Model:E240-000057-11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron E240-000057-11 Controller Cooling Fan Card

Product manual:

Product model: E240-000057-11
Name: Controller Cooling Fan Card
Manufacturer: Tokyo Electron Ltd. (TEL)
Component category: Heat dissipation and fan control module

1、 Product Overview:

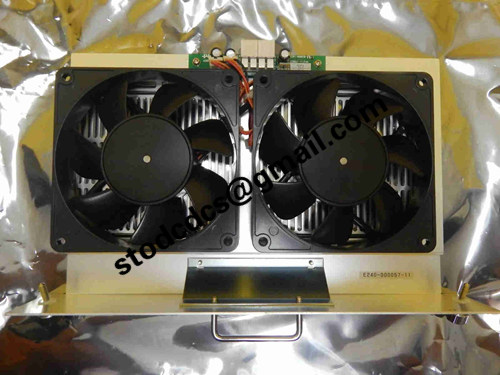

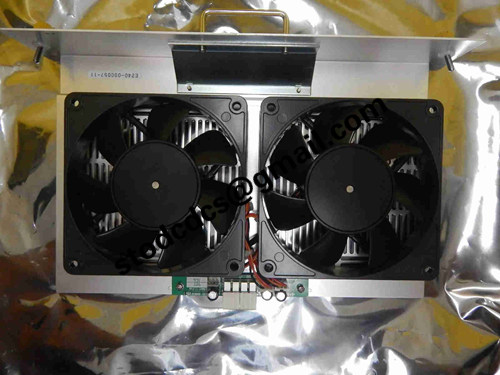

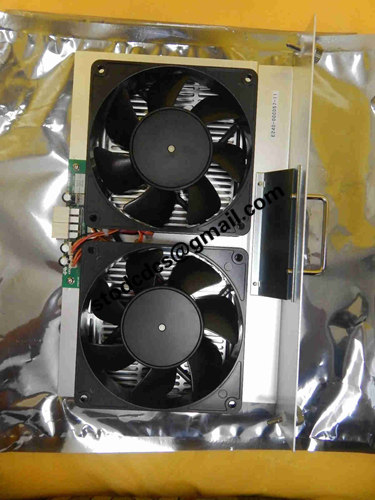

E240-000057-11 Controller Cooling Fan Card
It is an electronic module used in TEL semiconductor equipment to control and manage the cooling fan of the controller.
This module monitors the status of the fan, adjusts the fan speed, and achieves effective heat dissipation for the device controller and key electronic components, ensuring long-term stable operation of the equipment.

This fan card integrates fan drive, status detection, and protection functions, and is an important component of the device's thermal management system.

2、 Main functions:
Function module description
Fan drive control adjusts the speed of the cooling fan to adapt to temperature changes
Real time monitoring of fan speed and working status, feedback of abnormal alarms
Overload protection prevents damage to the fan motor due to overload, ensuring safe operation
Interface connection with device main control board and fan motor, supporting signal communication
Fault diagnosis supports the device system to obtain fan fault information for easy maintenance

3、 Technical parameters (typical value estimation):
Project Description
The working voltage is usually 12V or 24V DC
The fan speed range depends on the fan specifications and supports PWM speed regulation or voltage speed regulation
Monitoring signal fan speed sensor signal input (such as Tach signal)
Protection function overcurrent, over temperature, and shutdown alarm
Multi pin connector or terminal block for connecting interfaces

4、 Application scenarios:
Controller module heat dissipation management

Temperature control and protection of key electronic components

Automatic adjustment and fault alarm of cooling system

Intelligent fan control during device environmental temperature changes
