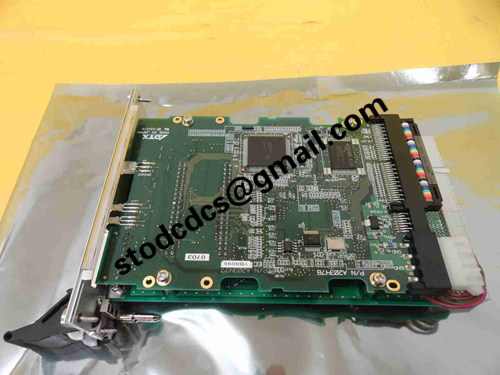

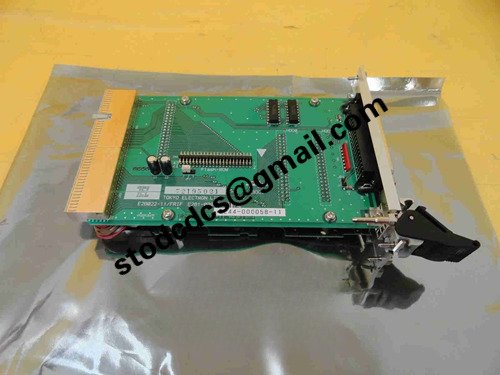

TEL Tokyo Electron E244-000058-11 Digital Control Board

Brand:TEL Tokyo Electron
Model:E244-000058-11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron E244-000058-11 Digital Control Board

Product manual:

Product Name: E244-000058-11 Digital Control Board
Manufacturer: Tokyo Electron Ltd
Product type: Digital I/O Control Board

1、 Product Overview
E244-000058-11 is a digital input/output control board in Tokyo Electron semiconductor equipment,
Mainly used to collect switch status signals from various parts of the device and control digital actuators such as solenoid valves, relays, and light indicators.
It serves as a key I/O interface for the control system, enabling logical response and device linkage of the system.

2、 Core functions
Digital input acquisition

Collect switch signals from sensors, limit switches, buttons, etc. as the basis for system control judgment.

Digital output control

By outputting switch signals, control the start and stop of components such as solenoid valves, signal lights, relays, etc.

Electrical isolation and protection

The input and output channels are designed with isolation circuits to improve anti-interference ability and protect the safety of the main control system.

Modular communication

Communicate with the main control CPU or PLC system through backplane bus or serial interface to achieve instruction response.

3、 Typical application scope
This board is widely used in various semiconductor devices of TEL:

Gate control system for vacuum chamber

Gas valve array control module

Mechanical arm, lifting device limit control

Alarm and safety interlock system

Equipment status indicator light, buzzer control unit
