TEL Tokyo Electron E244-00048-21 Single Board Computer

Product manual:

TEL Tokyo Electron E244-00048-21 Single Board Computer (SBC)
It is one of the core processing units in the control system of Tokyo Electron semiconductor equipment,
Mainly responsible for executing process control logic, communication management, human-machine interface (HMI) processing, and issuing system operation instructions.
It is a key component in the E244 series control architecture, commonly used in TEL's etching CVD、 In high-end equipment such as cleaning, coating and developing, and wafer handling.

1、 Basic Information
Product model: E244-00048-21

Product Name: Single Board Computer (SBC)

Manufacturer: Tokyo Electron Ltd. (TEL)

Category: Control Motherboard/Industrial Embedded Computing Platform

Application location: Core CPU board in TEL E244 control architecture

2、 Main functions
Central Processing Unit (CPU)

Run TEL dedicated operating systems or embedded control software (such as VxWorks or Linux variants);

Process all instructions and data from process modules, sensor modules, and actuators.

I/O signal management

Manage data signals from input/output modules such as I/O control cards and acquisition cards;

Execute feedback control logic, interlock judgment, and process switching.

Communication and interface coordination

Provide communication interfaces with fieldbus, backplane bus, Ethernet, RS232/RS485, CAN, etc;

High speed data communication with peripheral modules such as BX81, E249, DAQ module.

Data processing and logging

Real time processing of equipment operation data, alarm information, and parameter logs, providing process tracking and backtracking support;

Connect the human-machine interface (HMI) to achieve monitoring and control.

Process Control and Scheduling

Control the collaborative execution of subsystems such as air circuit, temperature control, handling actions, door valves, etc;

Implement multi task process management and process segment switching.

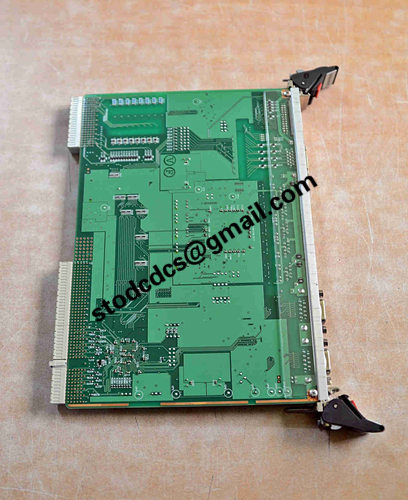

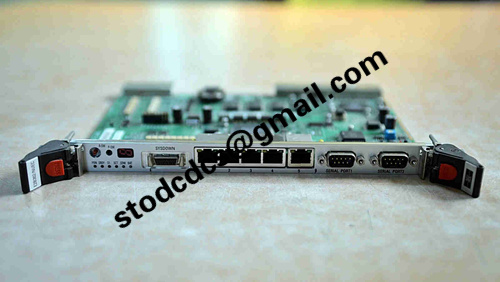

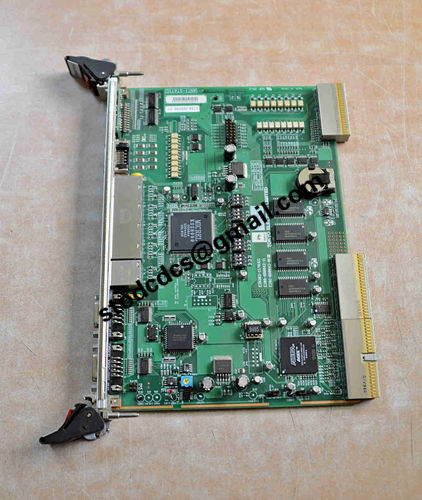

Product details picture:
