TEL Tokyo Electron IPC-T007A-11 Interface Module
Brand:TEL Tokyo Electron
Model:IPC-T0075A-11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
TEL Tokyo Electron IPC-T007A-11 Interface Module
Product manual:
Product model: IPC-T007A-11
Manufacturer: Tokyo Electron Ltd. (TEL)
Component Category: Signal Interface Conversion and Communication Module
1、 Product Overview:
IPC-T0075A-11 is an interface module used in TEL semiconductor equipment for connecting and converting various signals.
Its main function is to operate between different subsystems or device modules,
Realize the conversion and transmission of digital signals, analog signals, and communication protocols to ensure reliable exchange of information within the device.
This module is typically responsible for coordinating communication between various sensors, actuators, and main control units,
Enhance the flexibility and compatibility of the system.
2、 Main functions:
Function Description
Signal conversion realizes the conversion and interface matching of digital signals and analog signals
The communication protocol supports multiple internal buses and communication protocols, such as RS-232, RS-485, CAN, etc
Signal isolation protects signal transmission from electrical interference and damage
Port expansion provides multiple input and output interfaces, supporting multiple device connections
State monitoring has the functions of fault detection and communication status indication
3、 Technical specifications (speculation):
Project parameter description
Power requirement 5V or 24V DC (depending on specific application)
Multiple connection methods including interface types DB9, RJ45, terminal block, IDC pin, etc
Support signal types TTL/CMOS digital signals, analog voltage signals
Communication speed supports up to several hundred kbps to Mbps levels
Physical size plug-in card or modular installation structure, convenient for device integration
4、 Application scenarios:
Signal conversion and transmission between subsystems within the device
Signal adaptation between the main controller and sensor/actuator interface
Expansion of Communication Bus and Standardization of Interface
Interface testing points during system diagnosis and maintenance

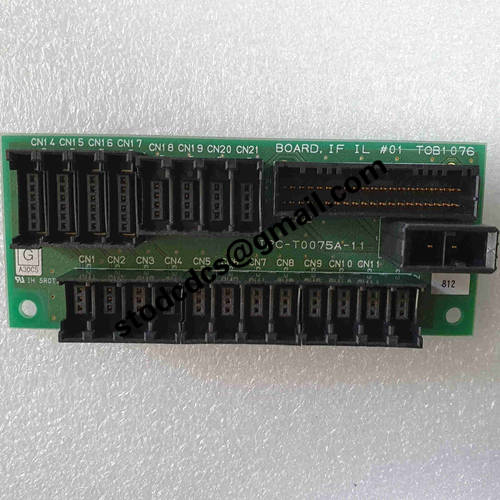

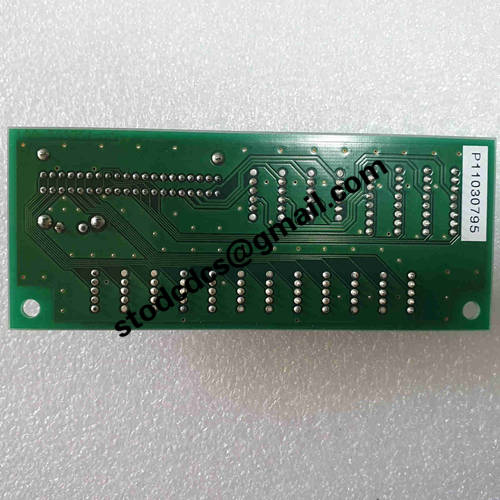

Product details picture:
