TEL Tokyo Electron REX-B860-CS1 Digital Input Module

Product manual:

TEL Tokyo Electron REX-B860-CS1 Digital Input Module
It is an industrial grade signal acquisition unit designed specifically for semiconductor manufacturing equipment,
Mainly responsible for receiving and managing digital signals (DI) from on-site sensors, switchgear, interlocking systems, etc,
It is one of the important components for the control system to achieve real-time monitoring and action judgment.

1、 Basic Information
Product model: REX-B860-CS1

Product Name: Digital Input Module

Manufacturer: Tokyo Electron Ltd. (TEL)

Module type: Control system I/O submodule

Signal type: Digital input (usually 24V DC or TTL logic)

2、 Main functions
Digital signal acquisition

Receive switch signals from sensors, buttons, limit switches, door control systems, etc;

The collected signals can be used for process start stop control, safety interlocking, equipment feedback, etc.

Status judgment and real-time response

Signal isolation and protection

The channel has photoelectric isolation to enhance anti-interference ability;

Module communication and bus integration

Connect to TEL control backplane or fieldbus (such as RS485, CAN, TTL parallel bus);

Multiple digital input modules can be combined to construct a large-scale signal acquisition network.

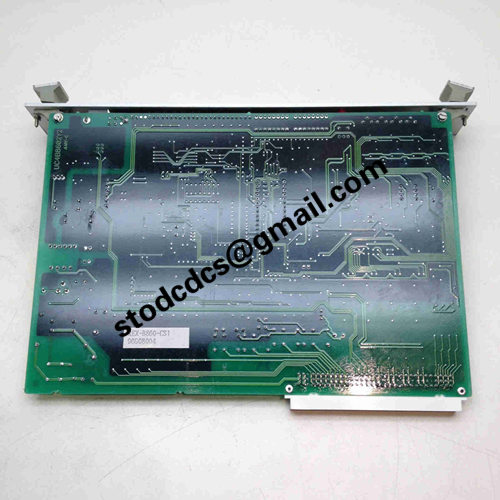

Product details picture:

REX-B860-CS1
