TEL Tokyo Electron SVB-20MVE-ADV2 signal bus backplane

Product manual:

TEL Tokyo Electron SVB-20MVE-ADV2 signal bus backplane
It is a high-performance backplane module used for inter module communication and electrical connections within Tokyo Electronics (TEL) semiconductor equipment,
Mainly used as a communication platform and power distribution center for multiple functional boards.
It constitutes the "backbone channel" of the device electronic system and is of crucial importance for the stable operation of the overall control system.

1、 Basic Product Information
Project Content
Product Name: Signal Bus Backplane
Product model SVB-20MVE-ADV2
Manufacturer Tokyo Electron Ltd
Module type Backplane communication and power interface platform

2、 Main functions
Signal transmission platform

Provide a unified data bus structure to achieve efficient signal exchange between multiple functional modules;

Support unified routing of digital signals, analog signals, and control signals.

Modular interface support

Design with multiple standard slots (such as VME, CPCI, etc.), supporting direct insertion of control cards, I/O cards, monitoring modules, etc;

Each slot has standardized signal/power interfaces, ensuring plug and play and easy maintenance.

3、 Application Fields
Semiconductor equipment control system

The central control architecture used in TEL's adhesive development, etching, cleaning, heat treatment and other equipment;

Carrying multiple functional units such as control CPU board, I/O module, temperature control card, communication interface, etc.

Process automation control platform

As the main communication carrier in a multi board collaborative system, maintain a high bandwidth and high stability signal channel;

Support real-time response and multitasking in complex action processes.

Equipment maintenance and modular expansion

Easy to replace or expand functional boards without requiring significant changes to the device structure;

It is one of the essential structural components in the long-term operation of equipment.

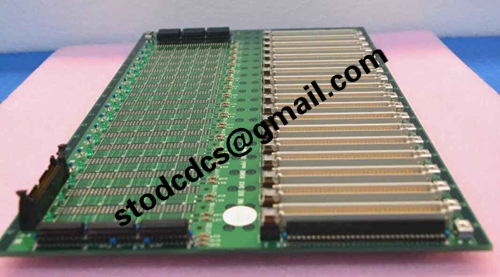

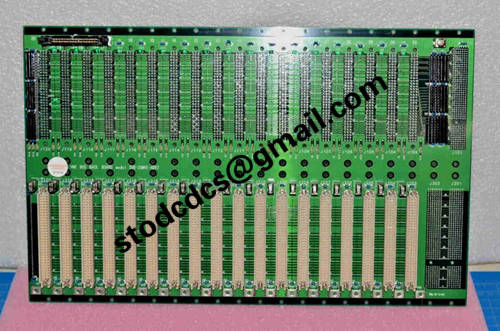

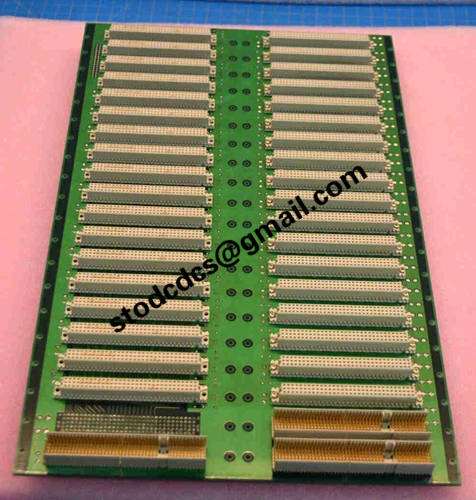

Product details picture:
