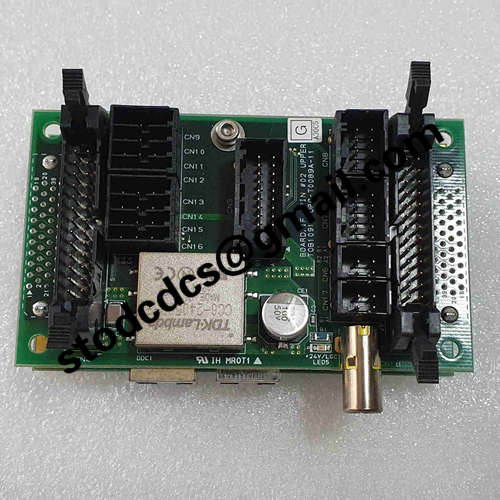

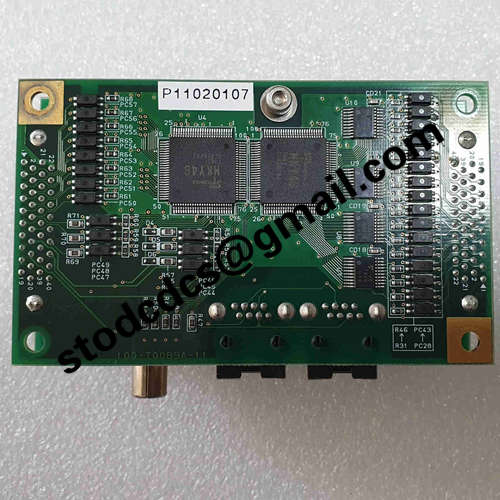

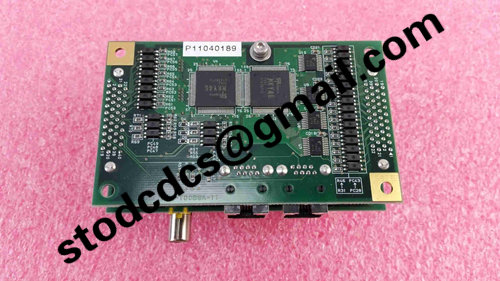

TEL Tokyo Electron UPC-T0089A-11 connector module

Brand:TEL Tokyo Electron
Model:UPC-T0089A-11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TEL Tokyo Electron UPC-T0089A-11 connector module

Product manual:

TEL Tokyo Electron UPC-T0089A-11 connector module
Category: Connector Module
Manufacturer: Tokyo Electron Ltd. (TEL)

1、 Product Function Overview
This connector module is mainly used in semiconductor manufacturing equipment to achieve reliable electrical connections between various electronic modules inside the equipment. Its functions include:

Provide multi pin and multi-channel electrical and control signal interfaces

Connect sub modules such as the main control board, interface board, sensor module, driver, etc

Supports high-speed data transmission and low resistance power connection

Compact structure, convenient modular installation and quick disassembly and maintenance

2、 Typical application areas
Internal signal bus connection of the device

As a standard interface between various control modules, it enables the transmission of data and control signals

Gas flow control and valve drive system

Connect the Mass Flow Controller (MFC) to the main control board to achieve precise gas ratio control

Mechanical arm and handling module

The electrical interface that drives the robotic arm to perform actions ensures stable signals and precise movements

Vacuum chamber monitoring system

Connect sensors, valves, and monitoring units to ensure safe operation of the vacuum system
