Tokyo Electron 3B44-000083-11 Digital Control Board

Product manual:

Tokyo Electron 3B44-000083-11 Digital I/O Control Board
It is an industrial grade digital signal control module used in semiconductor equipment,
Mainly used for receiving and outputting switch signals (digital signals), undertaking functions such as equipment status acquisition, action command issuance, and interlocking execution,
It exists as an important component of the control system in various TEL devices.

1、 Basic Information
Product Model: 3B44-000083-11

Product Name: Digital I/O Control Board

Manufacturer: Tokyo Electron Ltd. (TEL)

Module Category: Digital Input/Output Control Board (DI/DO)

2、 Main functions
Digital Input Acquisition (DI)

Receive switch status feedback from sensors, limit switches, safety doors, solenoid valves, etc;

Used for equipment status recognition, alarm monitoring, process interlocking control, etc.

Digital Output Control (DO)

Output switch control signals to actuators (such as relays, solenoid valves, starters);

Implement operations such as opening and closing air valves, controlling the valve body, and starting/stopping equipment.

High speed signal response and real-time control

Multi channel concurrent response capability, suitable for the simultaneous control of multiple signals in complex processes;

Fast response time (ms level), supporting interlock protection and emergency shutdown mechanism.

Electrical isolation and protection design

There is a photoelectric isolation design between the channel and the control system to prevent signal interference and fault propagation;

Support electrical protection functions such as surge protection and short circuit protection.

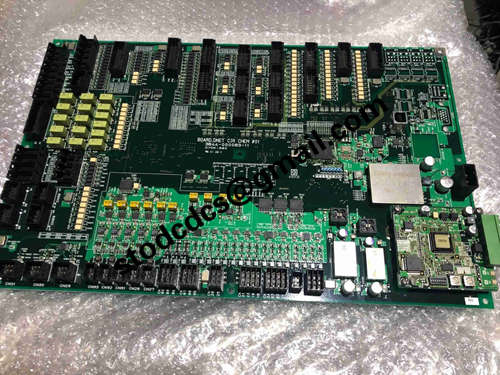

Product details picture:

3B44-000083-11
