Tokyo Electron 3D80-000300-13 Turbomolecular Pump

Brand:TEL Tokyo Electron
Model:3D80-000300-13
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Tokyo Electron 3D80-000300-13 Turbomolecular Pump

Product manual:

Tokyo Electron 3D80-000300-13 Turbomolecular Pump
It is a high-performance vacuum equipment designed specifically for high vacuum process environments in semiconductor manufacturing equipment,
Usually integrated into the vacuum process platform under Tokyo Electron (TEL),
Systems such as etching, deposition, ion implantation, etc. The following is a detailed analysis of the application areas of the pump:

1、 Product Function Overview
Type: High speed turbo molecular pump

Function: Quickly establish and maintain high vacuum in the vacuum chamber (usually within the range of 10 ⁻⁵ to 10 ⁻⁸ Torr)

characteristic:

High pumping speed

low vibration

Can be linked with the dry front-end pump

Suitable for corrosive or inert gas environments

2、 Main application areas
1. Plasma Etcher
Used to maintain a stable high vacuum inside the cavity, ensuring uniform plasma formation and reaction control.

Support fast pumping response to meet the rhythm of high-throughput production.

2. CVD/ALD thin film deposition equipment
Maintain a low pressure environment in the sedimentation chamber to avoid the deposition of impurity particles.

Helps to improve the purity and surface quality of the film layer.

3. Ion implantation equipment
Maintain ultra-high vacuum during ion beam implantation to reduce collisions between gas molecules and ions.

Improve doping accuracy and reduce device defect rate.

4. PVD evaporation/sputtering system
Quickly establish a reference vacuum before sputtering.

Maintain a stable vacuum during the process to control the deposition path of evaporated materials.

5. Testing and analysis equipment
In vacuum dependent analyzers such as SEM, XPS, RIE, etc., turbo molecular pumps are often configured to achieve the necessary vacuum degree.

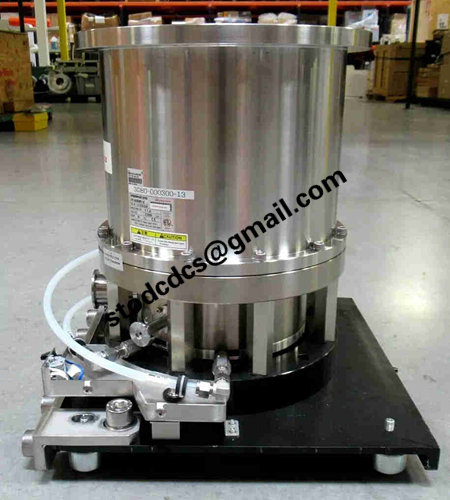

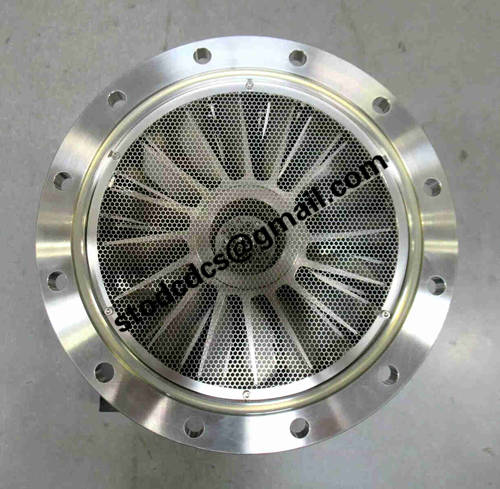

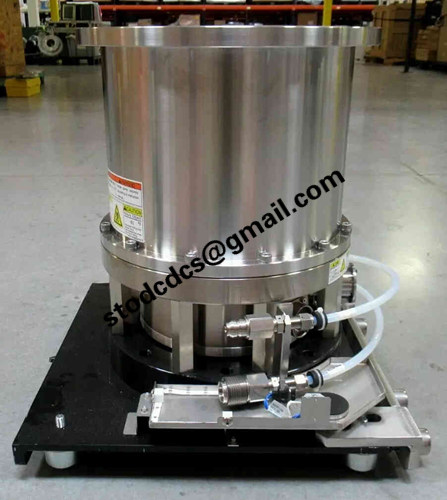

Product details picture:

3D80-000300-13
