TOYOTA TP-1694-2 Control Board Module

Product manual:

product overview
The TOYOTA TP-1694-2 control board module is a core control unit used for Toyota automation equipment,
It integrates functions such as signal acquisition, logical operation, execution control, and communication.
It is usually installed in robot control cabinets, automated production lines, or specialized process equipment,
Responsible for coordinating the actions of various execution units to achieve precise control and monitoring of the production process.
This module design focuses on stability and maintainability, adapting to industrial environments with long-term high load operation.

Technical parameters (example, specific values need to be confirmed according to the actual version)

Processor type: Industrial grade embedded processor or programmable logic control unit

Input/output interface: Multi channel digital and analog interface

Communication interface: Supports RS-232/RS-485/CAN/Ethernet or Toyota specific protocols

Working voltage: DC 24V (common industrial standard)

Storage capacity: Built in program storage and data buffer memory

Working environment: -10 ℃~+55 ℃, designed for earthquake resistance and dust prevention

Installation method: rack mounted or module plug-in

Application scenarios

Control of automobile manufacturing production line

Logic and action control for automated workstations such as welding, assembly, and painting

Realize synchronous operation of multiple workstations and process parameter management

Industrial Robot Control System

Coordinate joint movements of multi degree of freedom robots

Handling path planning, speed control, and real-time position feedback

Testing and Quality Control Equipment

Sensor signal acquisition and result determination for managing automatic detection workstations

Feedback the test results to the central control system

Conveyor and Sorting System

Control the operation of conveyor belts, sorting robotic arms, and stacking equipment

Integrate with other modules to ensure smooth logistics connection

Special process unit control

Applied to non-standard automation equipment, such as precision assembly, heat treatment, and other processes

Support custom control logic and parameter adjustment

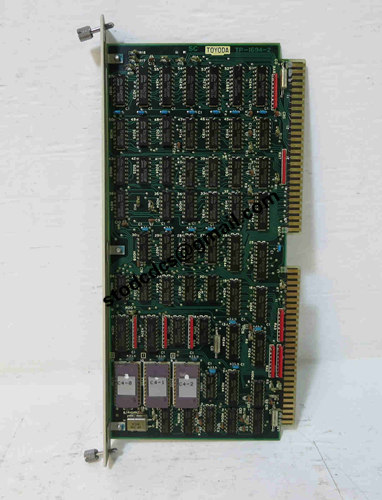

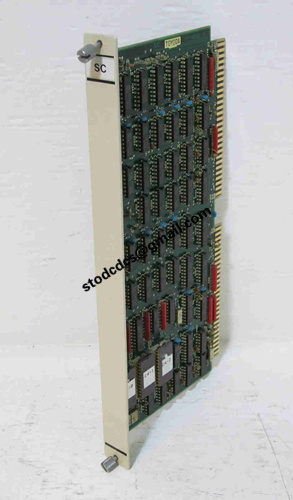

Product details picture:

TP-1694-2
